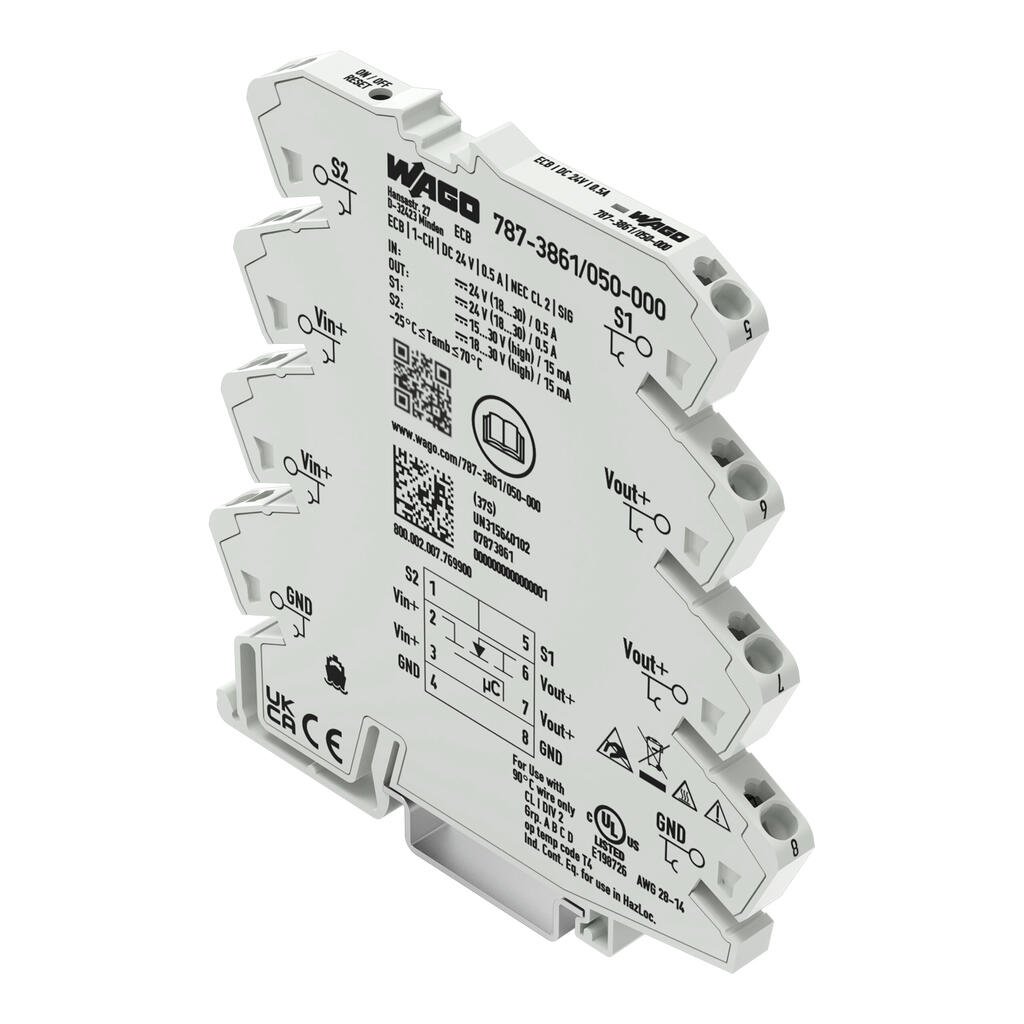

wago 787-3861/050-000

Mounting type

DIN-35 rail

质量

55.6g

Isolation voltage (connectors – housing)

DC 1.5?kV

Protection class

III

Protection type

IP20; per EN 60529

Reverse voltage protection

无

Transient suppression (primary)

Suppressor diode (33 V)

Parallel operation of single channels

Not permitted

Series operation

无

MTBF

1,168,394 h

Number of jumper slots

8

Connection technology

Push-in CAGE CLAMP?

WAGO connector

WAGO 857 Series

Solid conductor

0.08 … 2.5?mm2?/ 26 … 14?AWG

Fine-stranded conductor

0.34 … 2.5?mm2?/ 22 … 14?AWG

Strip length

9 … 10?mm?/ 0.35 … 0.39?inches

Note (conductor cross-section)

Depending on the output current, use the conductor cross-sections tested and approved by UL:26 … 14 AWG (0.5 A)

Depth from upper-edge of DIN-rail

97.8 mm / 3.85 inches

Fire load

0.631MJ

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-40 … +85 °C

Relative humidity

10 … 95?% (no condensation permissible)

Derating

No derating

Operating altitude

≤ 2000 m (a.s.l.)

Conformity marking

CE; UKCA

Standards/specifications

EN 61000-6-2

ETIM 9.0

EC001440

ETIM 8.0

EC001440

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Bag

Country of origin

IN

Customs tariff number

85363010900

CAS-No.

11120-22-2

REACH Candidate List Substance

Diboron trioxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

2c687b67-17c4-429a-af69-cba7ea7d8126

SCIP notification number (Belgium)

b226009e-63e5-4185-b604-e6524ddbc9e1

SCIP notification number (Bulgaria)

7d4d6958-772e-43af-907c-7a2524f2b7a8

SCIP notification number (Czech Republic)

5117adb9-3638-4a4d-91fd-f7aceaa32a44

SCIP notification number (Denmark)

c7338c05-d5d7-4ba6-9d4e-3943aeacaad3

SCIP notification number (Finland)

c11408c5-060e-49dc-b069-a614874afded

SCIP notification number (France)

ac7b5a2a-2fda-4643-8162-669ded93a828

SCIP notification number (Germany)

b17eff02-2df1-439e-a9c3-528dbb4e79ef

SCIP notification number (Hungary)

4c56c711-da61-47e2-978b-43f9aa52a3ed

SCIP notification number (Italy)

b71d8fb2-d4a7-4aed-998e-27fa9eb65362

SCIP notification number (Netherlands)

2de6833b-6ad9-4c3f-9945-a931002413d7

SCIP notification number (Poland)

f2a46191-1e08-4a55-bb29-3797952dafeb

SCIP notification number (Romania)

be4a0ea4-645b-449a-b867-1686b995804c

SCIP notification number (Sweden)

fb6ba1fb-c7c1-4c2b-bb59-c62178e24b52

Nominal input voltage [V]

DC?24?V

Input voltage range

DC 18 … 30 V

Nominal output voltage [V]

1 x DC?24?V

Voltage drop

≤?40?mV

Nominal output current I_{o nom}

1 x 0.5?A (fixed setting)

Default setting

switched off

Trip time

4 ms … 100 s (load-dependent)

Switch-on capacity

>?50000?μF?(see instruction manual)

Switch-on behavior

Time-delayed channel switching (load-dependent, min. 0 ms/max. 500 ms)

Current limitation

无

Signaling

1 x Status LED (green/yellow/red)

Operation status indicator

Green LED (channel OK)

Remote input

1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A)

Power loss P_l

≤ 0.4 W (no load)

Efficiency (typ.)

96?%

Internal fuse

T 8 A

Overvoltage category

II

Pollution degree

2

注意

The device is designed for use in SELV circuits.

通道数量

1

Output voltage range

DC 18 … 30?V?(Ue? voltage drop)

宽度

6?mm?/ 0.236?inches

高度

94 mm / 3.701 inches
