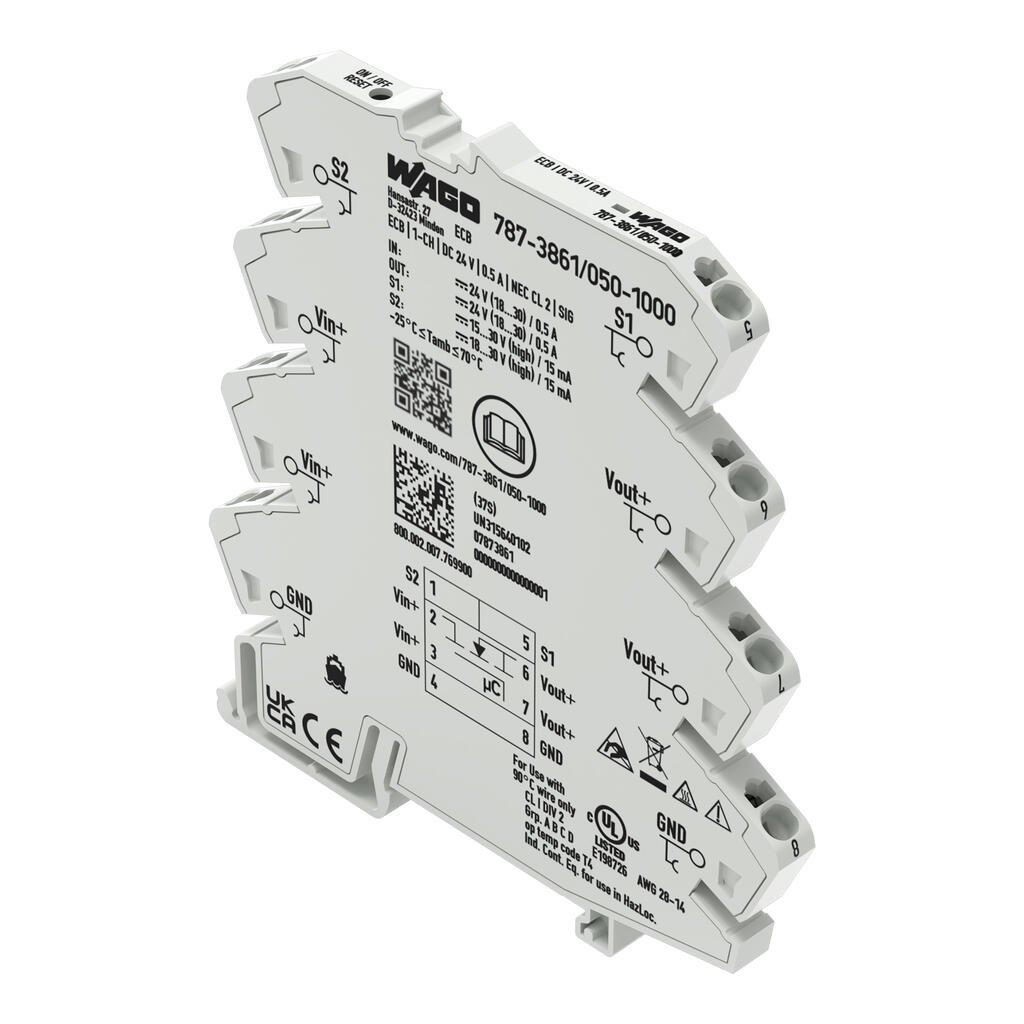

wago 787-3861/050-1000

Mounting type

DIN-35 rail

质量

55.6g

Isolation voltage (connectors – housing)

DC 1.5?kV

Protection class

III

Protection type

IP20; per EN 60529

Reverse voltage protection

无

Transient suppression (primary)

Suppressor diode (33 V)

Parallel operation of single channels

Not permitted

Series operation

无

MTBF

1,168,394 h

Number of jumper slots

8

Connection technology

Push-in CAGE CLAMP?

WAGO connector

WAGO 857 Series

Solid conductor

0.08 … 2.5?mm2?/ 26 … 14?AWG

Fine-stranded conductor

0.34 … 2.5?mm2?/ 22 … 14?AWG

Strip length

9 … 10?mm?/ 0.35 … 0.39?inches

Note (conductor cross-section)

Depending on the output current, use the conductor cross-sections tested and approved by UL:26 … 14 AWG (0.5 A)

Depth from upper-edge of DIN-rail

97.8 mm / 3.85 inches

Fire load

0.631MJ

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-40 … +85 °C

Relative humidity

10 … 95?% (no condensation permissible)

Derating

No derating

Operating altitude

≤ 2000 m (a.s.l.)

Conformity marking

CE; UKCA

Standards/specifications

EN 61000-6-2

ETIM 9.0

EC001440

ETIM 8.0

EC001440

ECCN

NO US CLASSIFICATION

PU (SPU)

1?pcs

Packaging type

Bag

Country of origin

IN

Customs tariff number

85363010900

CAS-No.

11120-22-2

REACH Candidate List Substance

Diboron trioxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

24e753d8-e92c-4dd1-8f44-291c22790dbe

SCIP notification number (Belgium)

a3a486a0-6aa9-4a6a-9f97-4c9ae50f4549

SCIP notification number (Bulgaria)

023fb22e-8ca1-4565-9012-b1e2845be79b

SCIP notification number (Czech Republic)

78145795-59ba-4765-a65d-2f15c896aac5

SCIP notification number (Denmark)

d2e8599d-0b42-469b-aa4b-8250887fd1e4

SCIP notification number (Finland)

a9415819-e0cb-41e7-b540-d66f134f87c2

SCIP notification number (France)

89f46946-4f4b-4ddf-8ae1-738ad2dfcfa3

SCIP notification number (Germany)

49c59e8f-764e-42d9-a6ef-b3c07542769a

SCIP notification number (Hungary)

410310e5-087e-4f84-9f6b-08a174f07839

SCIP notification number (Italy)

e2b26cb0-6785-4cf2-be42-2ad5402a0919

SCIP notification number (Netherlands)

aa967410-4dbf-40f9-b870-9162d2f25bf4

SCIP notification number (Poland)

6d76d5f7-7a40-4bc6-8975-88f3945ddbe3

SCIP notification number (Romania)

29ac3998-dfbb-4adb-bfa5-5b77641722e6

SCIP notification number (Sweden)

53913ed9-45a0-4bc6-8a8f-212e0d5dee32

Nominal input voltage [V]

DC?24?V

Input voltage range

DC 18 … 30 V

Nominal output voltage [V]

1 x DC?24?V

Voltage drop

≤?40?mV

Nominal output current I_{o nom}

1 x 0.5?A (fixed setting)

Default setting

switched off

Trip time

4 ms … 100 s (load-dependent)

Switch-on behavior

Time-delayed channel switching (load-dependent, min. 0 ms/max. 500 ms)

Current limitation

无

Signaling

1 x Status LED (green/yellow/red)

Operation status indicator

Green LED (channel OK)

Remote input

1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A)

Power loss P_l

≤ 0.4 W (no load)

Efficiency (typ.)

96?%

Internal fuse

T 4 A

Overvoltage category

II

Pollution degree

2

注意

The device is designed for use in SELV circuits.

通道数量

1

Output voltage range

DC 18 … 30?V?(Ue? voltage drop)

宽度

6?mm?/ 0.236?inches

高度

94 mm / 3.701 inches
