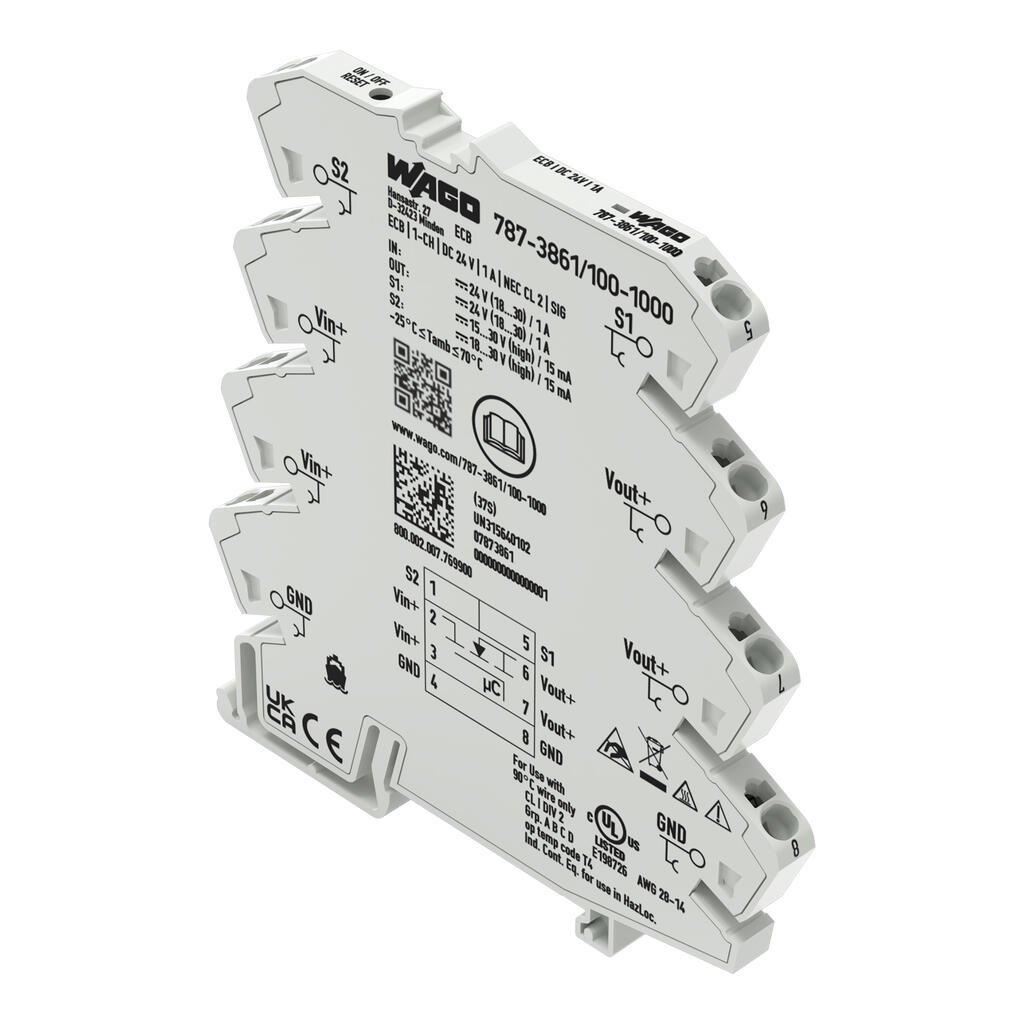

wago 787-3861/100-1000

Mounting type

DIN-35 rail

质量

55.6g

Isolation voltage (connectors – housing)

DC 1.5?kV

Protection class

III

Protection type

IP20; per EN 60529

Reverse voltage protection

无

Transient suppression (primary)

Suppressor diode (33 V)

Parallel operation of single channels

Not permitted

Series operation

无

MTBF

1,168,394 h

Number of jumper slots

8

Connection technology

Push-in CAGE CLAMP?

WAGO connector

WAGO 857 Series

Solid conductor

0.08 … 2.5?mm2?/ 26 … 14?AWG

Fine-stranded conductor

0.34 … 2.5?mm2?/ 22 … 14?AWG

Strip length

9 … 10?mm?/ 0.35 … 0.39?inches

Note (conductor cross-section)

Depending on the output current, use the conductor cross-sections tested and approved by UL:26 … 14 AWG (0.5 A);24 … 14 AWG (1 A)

Depth from upper-edge of DIN-rail

97.8 mm / 3.85 inches

Fire load

0.631MJ

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-40 … +85 °C

Relative humidity

10 … 95?% (no condensation permissible)

Derating

No derating

Operating altitude

≤ 2000 m (a.s.l.)

Conformity marking

CE; UKCA

Standards/specifications

EN 61000-6-2

ETIM 9.0

EC001440

ETIM 8.0

EC001440

ECCN

NO US CLASSIFICATION

PU (SPU)

1?pcs

Packaging type

Bag

Country of origin

IN

Customs tariff number

85363010900

CAS-No.

11120-22-2

REACH Candidate List Substance

Diboron trioxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

75dcd74a-91d1-4057-b201-b7bbf10892b5

SCIP notification number (Belgium)

1b1f27cc-07f8-4ce7-a523-8d5f28bc04d4

SCIP notification number (Bulgaria)

27661f5a-9fe4-48c0-a768-5894a0fac69d

SCIP notification number (Czech Republic)

f6cc626e-0410-4f1c-8bef-d592570df280

SCIP notification number (Denmark)

d2f0ceb3-219b-4cb9-84c2-cf20fddf9a7f

SCIP notification number (Finland)

46940890-32f6-47ff-b2c3-c5319565618e

SCIP notification number (France)

7f0370b6-61ab-4cf4-b850-79520ca088b5

SCIP notification number (Germany)

83497e1e-e446-403d-98cc-8676e9fa8977

SCIP notification number (Hungary)

12b11495-0199-4b22-92a8-24ac0c9b5a4d

SCIP notification number (Italy)

14f282f8-8926-4b87-b5d9-6e95b8e791a1

SCIP notification number (Netherlands)

d5b43b3a-9afb-44c8-a29b-a252cb4fead0

SCIP notification number (Poland)

d40ed850-9c1e-48d1-8e8c-64a87bc72eae

SCIP notification number (Romania)

7ef0433f-97c4-4f94-a73b-3f23a5f67287

SCIP notification number (Sweden)

42ca5865-1388-47a9-be81-80dcaa3ab5b6

Nominal input voltage [V]

DC?24?V

Input voltage range

DC 18 … 30 V

Nominal output voltage [V]

1 x DC?24?V

Voltage drop

≤?80?mV

Nominal output current I_{o nom}

1 x 1?A (fixed setting)

Default setting

switched off

Trip time

4 ms … 100 s (load-dependent)

Switch-on behavior

Time-delayed channel switching (load-dependent, min. 0 ms/max. 500 ms)

Signaling

1 x Status LED (green/yellow/red)

Operation status indicator

Green LED (channel OK)

Remote input

1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A)

Power loss P_l

≤ 0.4 W (no load)

Efficiency (typ.)

98?%

Internal fuse

T 4 A

Overvoltage category

II

Pollution degree

2

注意

The device is designed for use in SELV circuits.

通道数量

1

Output voltage range

DC 18 … 30?V?(Ue? voltage drop)

宽度

6?mm?/ 0.236?inches

高度

94 mm / 3.701 inches
