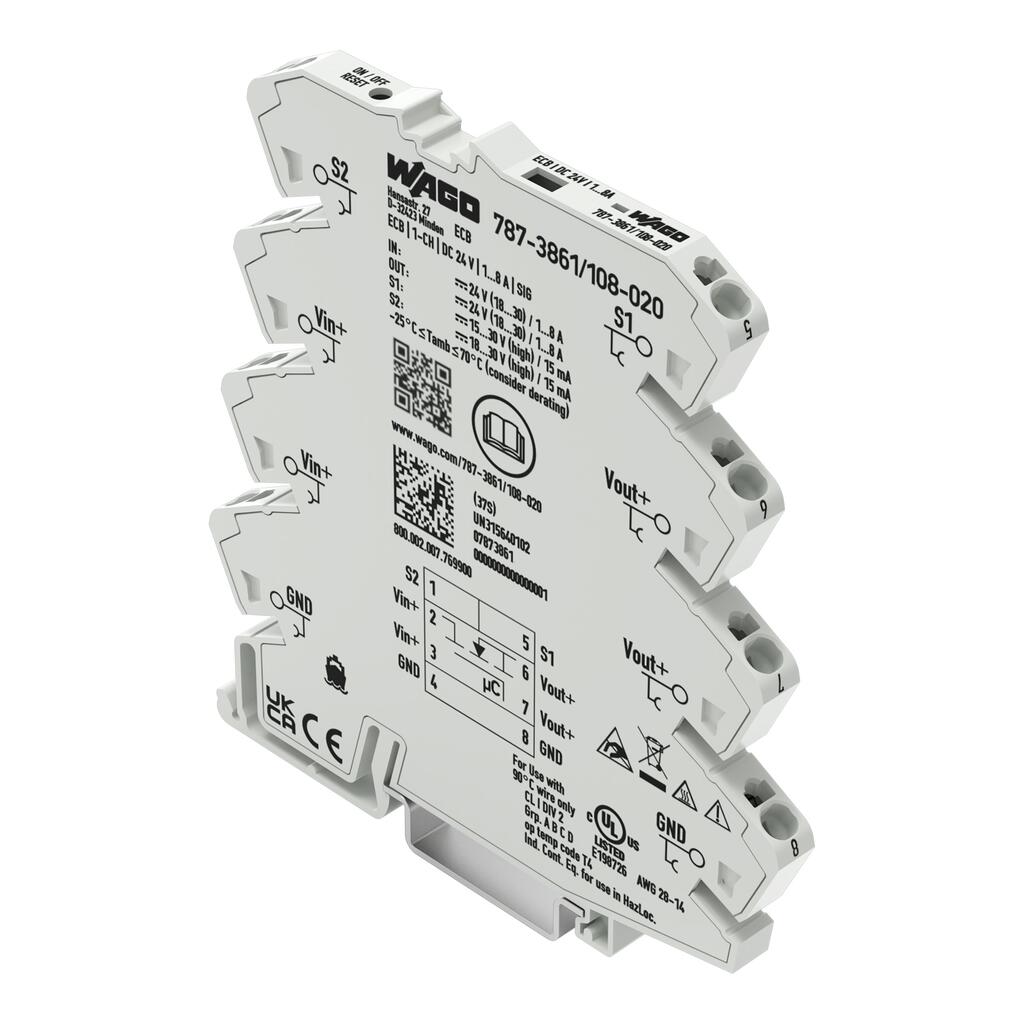

wago 787-3861/108-020

Mounting type

DIN-35 rail

质量

53g

Isolation voltage (connectors – housing)

DC 1.5?kV

Protection class

III

Protection type

IP20; per EN 60529

Reverse voltage protection

无

Transient suppression (primary)

Suppressor diode (33 V)

Parallel operation of single channels

Not permitted

Series operation

无

MTBF

807,840 h

Number of jumper slots

8

Connection technology

Push-in CAGE CLAMP?

WAGO connector

WAGO 857 Series

Solid conductor

0.08 … 2.5?mm2?/ 24 … 14?AWG

Fine-stranded conductor

0.34 … 2.5?mm2?/ 22 … 14?AWG

Strip length

9 … 10?mm?/ 0.35 … 0.39?inches

Note (conductor cross-section)

Depending on the output current, use the conductor cross-sections tested and approved by UL:26 … 14 AWG (0.5 A);24 … 14 AWG (1 A);22 … 14 AWG (2 A);20 … 14 AWG (3 A / 4 A);18 … 14 AWG (5 A / 6 A);16 … 14 AWG (7 A / 8 A)

Depth from upper-edge of DIN-rail

97.8 mm / 3.85 inches

Fire load

0.634MJ

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-40 … +85 °C

Relative humidity

10 … 95?% (no condensation permissible)

Derating

No derating

Operating altitude

≤ 2000 m (a.s.l.)

Conformity marking

CE; UKCA

Standards/specifications

EN 61000-6-2

ETIM 9.0

EC001440

ETIM 8.0

EC001440

ECCN

NO US CLASSIFICATION

PU (SPU)

1?pcs

Packaging type

Bag

Country of origin

IN

Customs tariff number

85363010900

CAS-No.

11120-22-2

REACH Candidate List Substance

Diboron trioxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

b32c6b38-8acb-4713-ba41-a31e9089ed9f

SCIP notification number (Belgium)

98ce4f37-7a53-47bb-8e75-f78fe7c0a170

SCIP notification number (Bulgaria)

3a6e9043-eb26-458e-bab1-c3c216570d55

SCIP notification number (Czech Republic)

eb3aca50-2f42-4ff8-a48c-c2689192a43d

SCIP notification number (Denmark)

b71bc243-6a14-4104-8685-4afcaab2d81f

SCIP notification number (Finland)

d5168b8b-dfdd-4732-aaae-3bfaa59ec9f9

SCIP notification number (France)

e8ebf949-b28b-4d9a-9e11-a681e960a351

SCIP notification number (Germany)

96ebdc4a-6d4a-4b95-947c-274f3d488737

SCIP notification number (Hungary)

2a464243-9905-4fff-bc55-2ffd254e9d5e

SCIP notification number (Italy)

30bca2bc-5ac1-4dec-95d0-9582c48d5f74

SCIP notification number (Netherlands)

1edc6ced-04aa-44f5-a4b9-d16e8c935329

SCIP notification number (Poland)

864b9dfe-fa85-40dd-8514-69fa1aca7fe7

SCIP notification number (Romania)

f6023abb-54ce-461f-87bb-20fa6de4be7a

SCIP notification number (Sweden)

2f5c1de5-de39-4215-866a-90168d171204

Nominal input voltage [V]

DC?24?V

Input voltage range

DC 18 … 30 V

Nominal output voltage [V]

1 x DC?24?V

Voltage drop

≤ 80 mV (1 A); ≤ 160 mV (2 A); ≤ 240 mV (3 A); ≤ 320 mV (4 A); ≤ 150 mV (5 A); ≤ 180 mV (6 A); ≤ 210 mV (7 A); ≤ 240 mV (8 A)

Nominal output current I_{o nom}

1 x 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8?A (adjustable)

Default setting

DC?1?A;?switched off

Trip time

10 ms … 90 s (load-dependent)

Switch-on capacity

>?50000?μF?(see instruction manual)

Switch-on behavior

Time-delayed channel switching (load-dependent, min. 0 ms/max. 500 ms)

Signaling

1 x Status LED (green/yellow/red)

Operation status indicator

Green LED (channel OK)

Remote input

1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A)

Power loss P_l

≤ 0.4 W (no load)

Efficiency (typ.)

98?%

Internal fuse

T 10 A

Overvoltage category

II

Pollution degree

2

注意

The device is designed for use in SELV circuits.

通道数量

1

Output voltage range

DC 18 … 30?V?(Ue? voltage drop)

宽度

6?mm?/ 0.236?inches

高度

94 mm / 3.701 inches
