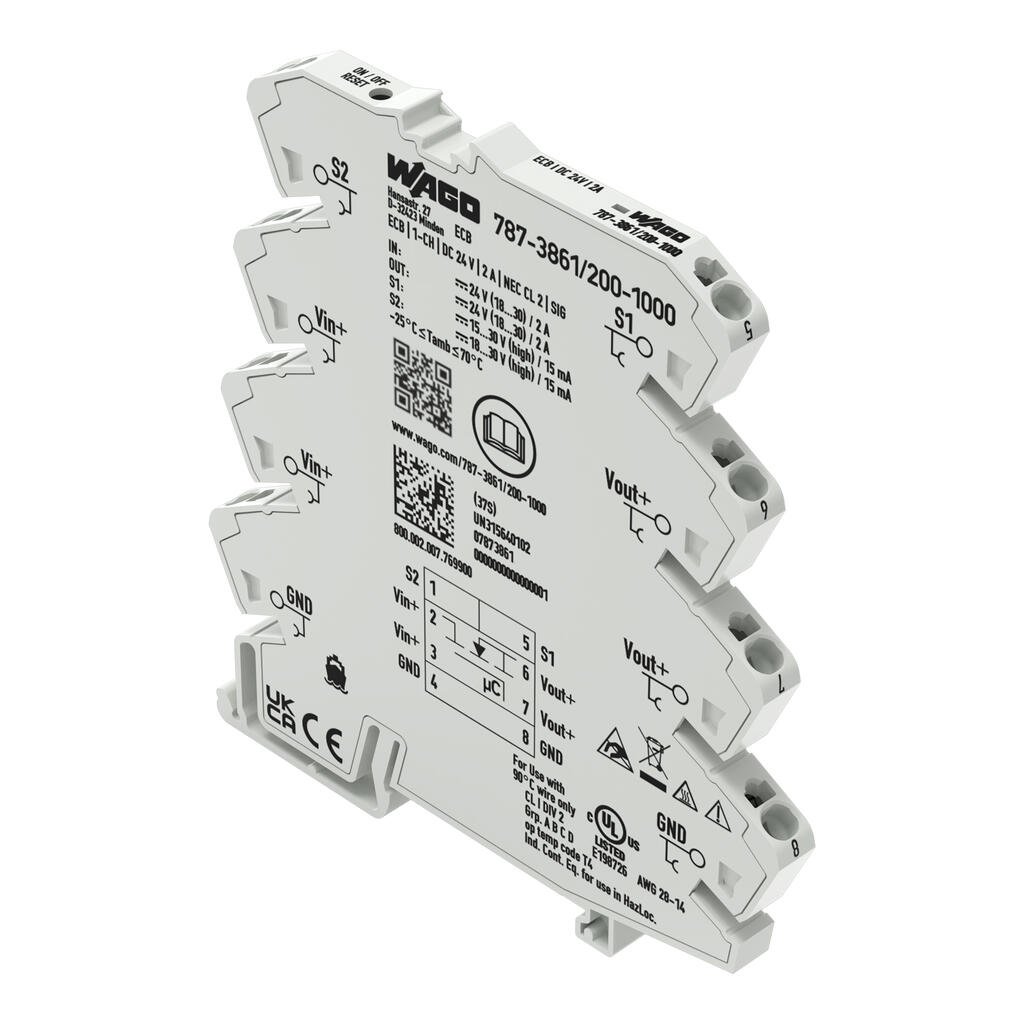

wago 787-3861/200-1000

Mounting type

DIN-35 rail

质量

53g

Isolation voltage (connectors – housing)

DC 1.5?kV

Protection class

III

Protection type

IP20; per EN 60529

Reverse voltage protection

无

Transient suppression (primary)

Suppressor diode (33 V)

Parallel operation of single channels

Not permitted

Series operation

无

MTBF

1,168,394 h

Number of jumper slots

8

Connection technology

Push-in CAGE CLAMP?

WAGO connector

WAGO 857 Series

Solid conductor

0.08 … 2.5?mm2?/ 26 … 14?AWG

Fine-stranded conductor

0.34 … 2.5?mm2?/ 22 … 14?AWG

Strip length

9 … 10?mm?/ 0.35 … 0.39?inches

Note (conductor cross-section)

Depending on the output current, use the conductor cross-sections tested and approved by UL:26 … 14 AWG (0.5 A);22 … 14 AWG (2 A)

Depth from upper-edge of DIN-rail

97.8 mm / 3.85 inches

Fire load

0.631MJ

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-40 … +85 °C

Relative humidity

10 … 95?% (no condensation permissible)

Derating

No derating

Operating altitude

≤ 2000 m (a.s.l.)

Conformity marking

CE; UKCA

Standards/specifications

EN 61000-6-2

ETIM 9.0

EC001440

ETIM 8.0

EC001440

ECCN

NO US CLASSIFICATION

PU (SPU)

1?pcs

Packaging type

Bag

Country of origin

IN

Customs tariff number

85363010900

CAS-No.

11120-22-2

REACH Candidate List Substance

Diboron trioxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

a7576538-523f-47cc-8cb6-edfbb7939a8a

SCIP notification number (Belgium)

672b6731-a4c7-4c1d-a26d-d61d6aafbf17

SCIP notification number (Bulgaria)

c8ef5fe7-4e83-4e42-82e4-ed76563028ec

SCIP notification number (Czech Republic)

7ec79cf2-56b1-412d-8e72-72acc3a935ee

SCIP notification number (Denmark)

0ef12c3d-92a8-4a1d-9988-1aeb0863d071

SCIP notification number (Finland)

83b9b7b3-c453-4af3-a056-cf44e0d8d7ee

SCIP notification number (France)

40030fd8-bc9e-4c18-bc58-492406cb7d8d

SCIP notification number (Germany)

c993fa6d-d849-4005-84dd-d1686caa0a95

SCIP notification number (Hungary)

9a98e824-9f24-47ae-bd05-97e797578080

SCIP notification number (Italy)

10badade-33a3-433a-a3b1-03aceee74243

SCIP notification number (Netherlands)

d17f1d28-f3b1-4956-a330-cd7c824b8e8d

SCIP notification number (Poland)

84cbed6d-0b4a-457a-8613-93c4b98350d5

SCIP notification number (Romania)

4e44edf5-b7f5-466e-a720-24ff0418ae54

SCIP notification number (Sweden)

69afda5d-6d2b-4a1b-bee0-4794eb9af4e9

Nominal input voltage [V]

DC?24?V

Input voltage range

DC 18 … 30 V

Nominal output voltage [V]

1 x DC?24?V

Voltage drop

≤?160?mV

Nominal output current I_{o nom}

1 x 2?A (fixed setting)

Default setting

switched off

Trip time

4 ms … 100 s (load-dependent)

Switch-on behavior

Time-delayed channel switching (load-dependent, min. 0 ms/max. 500 ms)

Signaling

1 x Status LED (green/yellow/red)

Operation status indicator

Green LED (channel OK)

Remote input

1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A)

Power loss P_l

≤ 0.4 W (no load)

Efficiency (typ.)

98?%

Internal fuse

T 4 A

Overvoltage category

II

Pollution degree

2

注意

The device is designed for use in SELV circuits.

通道数量

1

Output voltage range

DC 18 … 30?V?(Ue? voltage drop)

宽度

6?mm?/ 0.236?inches

高度

94 mm / 3.701 inches
