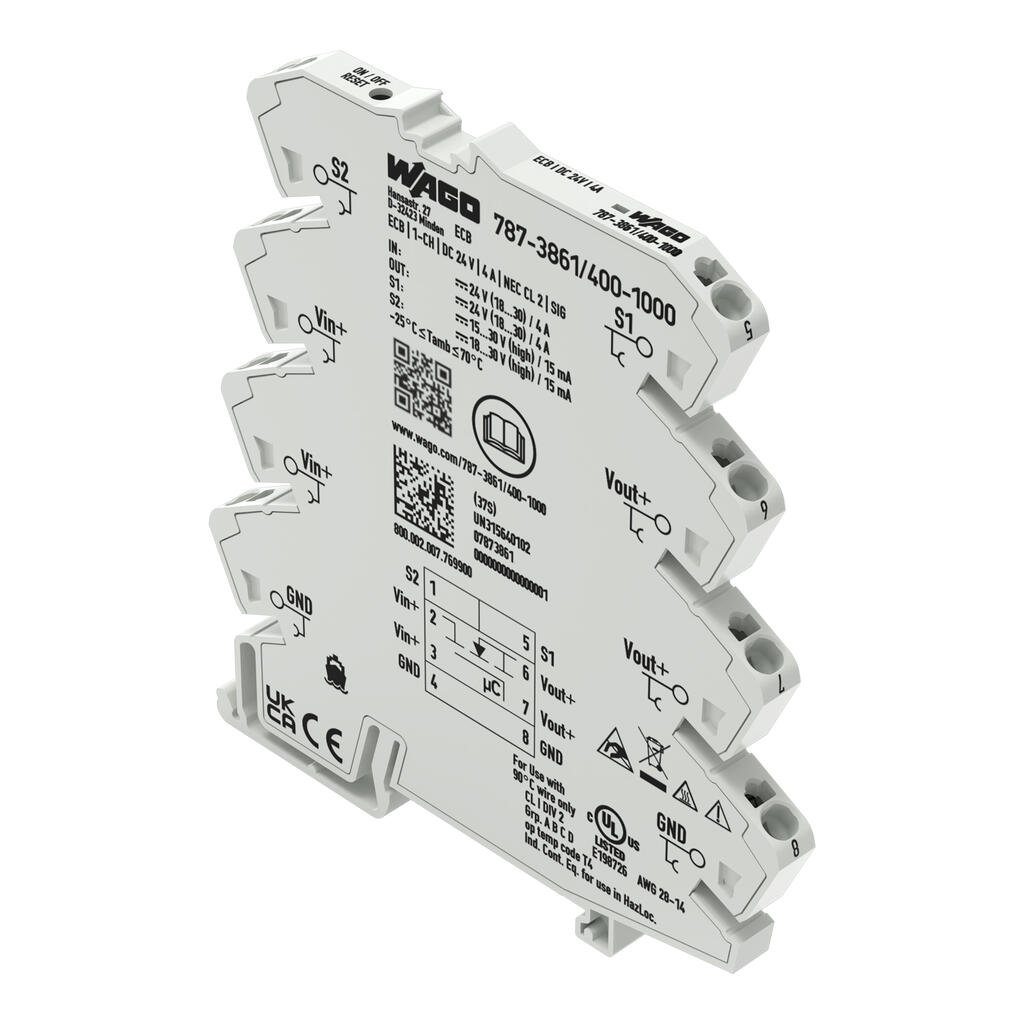

wago 787-3861/400-1000

Mounting type

DIN-35 rail

质量

53g

Isolation voltage (connectors – housing)

DC 1.5?kV

Protection class

III

Protection type

IP20; per EN 60529

Reverse voltage protection

无

Transient suppression (primary)

Suppressor diode (33 V)

Parallel operation of single channels

Not permitted

Series operation

无

MTBF

1,168,394 h

Number of jumper slots

8

Connection technology

Push-in CAGE CLAMP?

WAGO connector

WAGO 857 Series

Solid conductor

0.08 … 2.5?mm2?/ 26 … 14?AWG

Fine-stranded conductor

0.34 … 2.5?mm2?/ 22 … 14?AWG

Strip length

9 … 10?mm?/ 0.35 … 0.39?inches

Note (conductor cross-section)

Depending on the output current, use the conductor cross-sections tested and approved by UL:26 … 14 AWG (0.5 A);20 … 14 AWG (4 A)

Input voltage range

DC 18 … 30 V

Nominal output voltage [V]

1 x DC?24?V

Voltage drop

≤?320?mV

Nominal output current I_{o nom}

1 x 4?A (fixed setting)

Default setting

switched off

Trip time

4 ms … 100 s (load-dependent)

Switch-on behavior

Time-delayed channel switching (load-dependent, min. 0 ms/max. 500 ms)

Signaling

1 x Status LED (green/yellow/red)

Operation status indicator

Green LED (channel OK)

Remote input

1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A)

Power loss P_l

≤ 0.4 W (no load)

Efficiency (typ.)

98?%

Internal fuse

T 4 A

Overvoltage category

II

Pollution degree

2

Nominal input voltage [V]

DC?24?V

SCIP notification number (Sweden)

e8b96400-90cc-4684-85aa-79a15ab438d9

SCIP notification number (Romania)

145b6244-15b5-421d-995d-aa1d8ec8360e

SCIP notification number (Poland)

f9f45cf5-9aa8-4130-89bb-c3451553b5e9

SCIP notification number (Netherlands)

570fcfa5-044e-4504-a250-ba2632d0366b

SCIP notification number (Italy)

0638c04b-e59d-4e1a-82b4-70a31a0f07b2

SCIP notification number (Hungary)

6179d17c-6b3a-4d12-91d4-103173c6ebf6

SCIP notification number (Germany)

01788881-6158-41a2-a31e-b251b0913e84

SCIP notification number (France)

0505955a-98bc-4a68-8215-f23bbd97ec1e

SCIP notification number (Finland)

aa23a496-6486-4678-90d9-d67b0c7537f2

SCIP notification number (Denmark)

1af7f43e-102b-4f0f-bc3a-c6c23ca5d835

SCIP notification number (Czech Republic)

c63a4fbb-e450-4852-97d7-deb6096dda58

SCIP notification number (Bulgaria)

41aab237-5d95-4bf7-ae81-9f0cf9b1d093

SCIP notification number (Belgium)

4f2ff77b-12e8-4c37-8ddf-95e60225126d

SCIP notification number (Austria)

e069f53f-2f9f-46ed-aa1a-5723c68f4c91

RoHS Exemption

6(c)

RoHS Compliance Status

Compliant,With Exemption

REACH Candidate List Substance

Diboron trioxide

CAS-No.

11120-22-2

Customs tariff number

85363010900

Country of origin

IN

Packaging type

Bag

PU (SPU)

1?pcs

ECCN

NO US CLASSIFICATION

ETIM 8.0

EC001440

ETIM 9.0

EC001440

Standards/specifications

EN 61000-6-2

Conformity marking

CE; UKCA

Operating altitude

≤ 2000 m (a.s.l.)

Derating

No derating

Relative humidity

10 … 95?% (no condensation permissible)

Ambient temperature (storage)

-40 … +85 °C

Ambient temperature (operation)

-25 … +70 °C

Fire load

0.631MJ

Depth from upper-edge of DIN-rail

97.8 mm / 3.85 inches

注意

The device is designed for use in SELV circuits.

通道数量

1

Output voltage range

DC 18 … 30?V?(Ue? voltage drop)

宽度

6?mm?/ 0.236?inches

高度

94 mm / 3.701 inches
