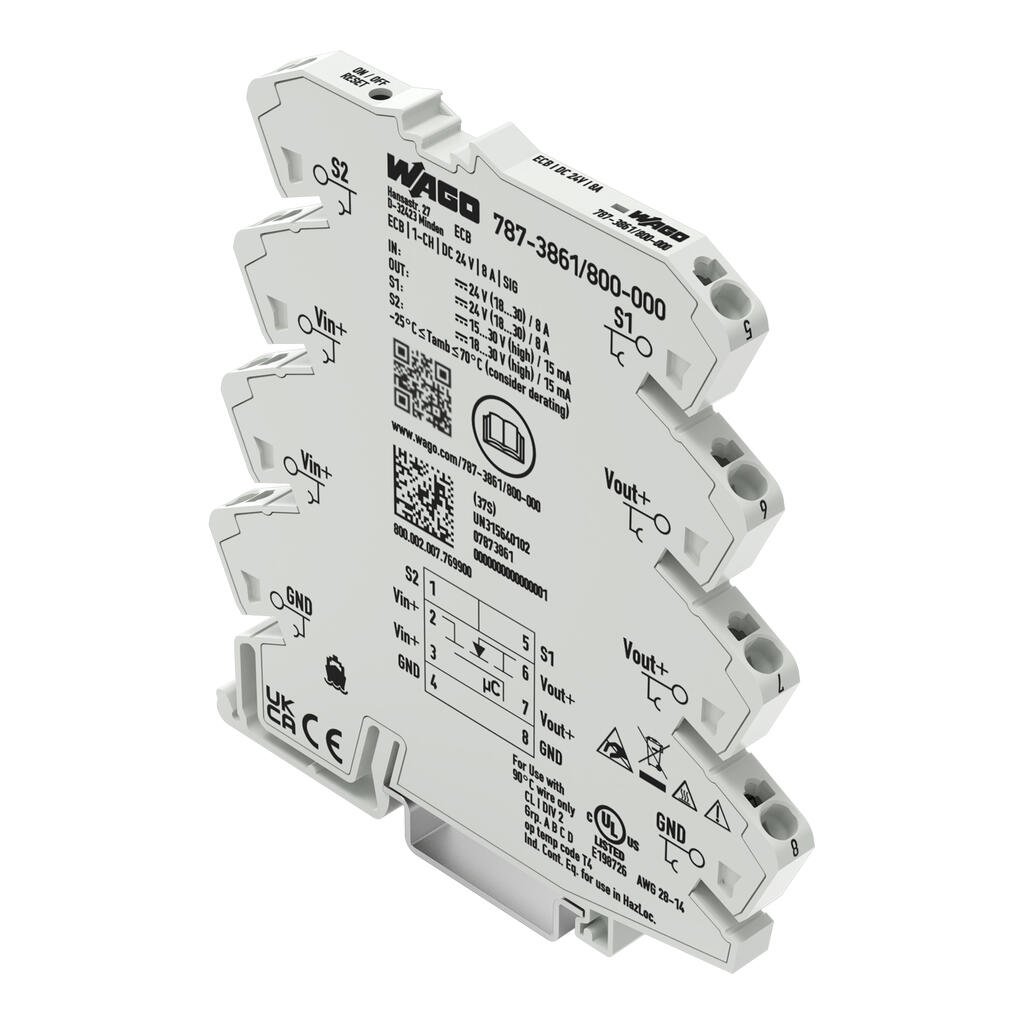

wago 787-3861/800-000

Mounting type

DIN-35 rail

质量

55.6g

Isolation voltage (connectors – housing)

DC 1.5?kV

Protection class

III

Protection type

IP20; per EN 60529

Reverse voltage protection

无

Transient suppression (primary)

Suppressor diode (33 V)

Parallel operation of single channels

Not permitted

Series operation

无

MTBF

1,168,394 h

Number of jumper slots

8

Connection technology

Push-in CAGE CLAMP?

WAGO connector

WAGO 857 Series

Solid conductor

0.08 … 2.5?mm2?/ 26 … 14?AWG

Fine-stranded conductor

0.34 … 2.5?mm2?/ 22 … 14?AWG

Strip length

9 … 10?mm?/ 0.35 … 0.39?inches

Note (conductor cross-section)

Depending on the output current, use the conductor cross-sections tested and approved by UL:26 … 14 AWG (0.5 A);16 … 14 AWG (8 A)

Depth from upper-edge of DIN-rail

97.8 mm / 3.85 inches

Fire load

0.631MJ

Ambient temperature (operation)

-25 … +70 °C

Ambient temperature (storage)

-40 … +85 °C

Relative humidity

10 … 95?% (no condensation permissible)

Derating

See instruction manual

Operating altitude

≤ 2000 m (a.s.l.)

Conformity marking

CE; UKCA

Standards/specifications

EN 61000-6-2

ETIM 9.0

EC001440

ETIM 8.0

EC001440

ECCN

NO US CLASSIFICATION

PU (SPU)

1?pcs

Packaging type

Bag

Country of origin

IN

Customs tariff number

85363010900

CAS-No.

11120-22-2

REACH Candidate List Substance

Diboron trioxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c)

SCIP notification number (Austria)

f4ed9a7d-6c14-42ca-83d8-123974f7b912

SCIP notification number (Belgium)

6207a6b5-cc06-4b12-9bcb-2743d73fc6cc

SCIP notification number (Bulgaria)

41007c8d-cb4b-42b5-857d-53bcaf532940

SCIP notification number (Czech Republic)

61e54745-6c94-4e63-b370-167a02dc4fcb

SCIP notification number (Denmark)

403f8dfd-5116-4425-8452-61cda180b5ac

SCIP notification number (Finland)

226624b0-cc3b-45fc-920a-67bf8c3735ac

SCIP notification number (France)

33c6aaf6-d1b8-46af-9610-b495191e9e11

SCIP notification number (Germany)

56af0e14-be3c-4072-8d32-773dc7218c57

SCIP notification number (Hungary)

d4dddbb4-cd8e-4685-ba71-424d2f174a15

SCIP notification number (Italy)

89d0c740-d734-4c26-8b0a-9105fa4a2a04

SCIP notification number (Netherlands)

495e61d6-4324-4e2d-8c84-a513c8d9be4d

SCIP notification number (Poland)

a383e97f-c30d-4029-829c-a8061136b6be

SCIP notification number (Romania)

99f095be-6cfe-4d3a-9646-f435a8282ce9

SCIP notification number (Sweden)

32fc0c58-3248-4cb4-b89d-8d16d8522239

Nominal input voltage [V]

DC?24?V

Input voltage range

DC 18 … 30 V

Nominal output voltage [V]

1 x DC?24?V

Voltage drop

≤?240?mV

Nominal output current I_{o nom}

1 x 8?A (fixed setting)

Default setting

switched off

Trip time

4 ms … 100 s (load-dependent)

Switch-on capacity

>?50000?μF?(see instruction manual)

Switch-on behavior

Time-delayed channel switching (load-dependent, min. 0 ms/max. 500 ms)

Signaling

1 x Status LED (green/yellow/red)

Operation status indicator

Green LED (channel OK)

Remote input

1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A)

Power loss P_l

≤ 0.4 W (no load)

Efficiency (typ.)

98?%

Internal fuse

T 10 A

Overvoltage category

II

Pollution degree

2

注意

The device is designed for use in SELV circuits.

通道数量

1

Output voltage range

DC 18 … 30?V?(Ue? voltage drop)

宽度

6?mm?/ 0.236?inches

高度

94 mm / 3.701 inches
