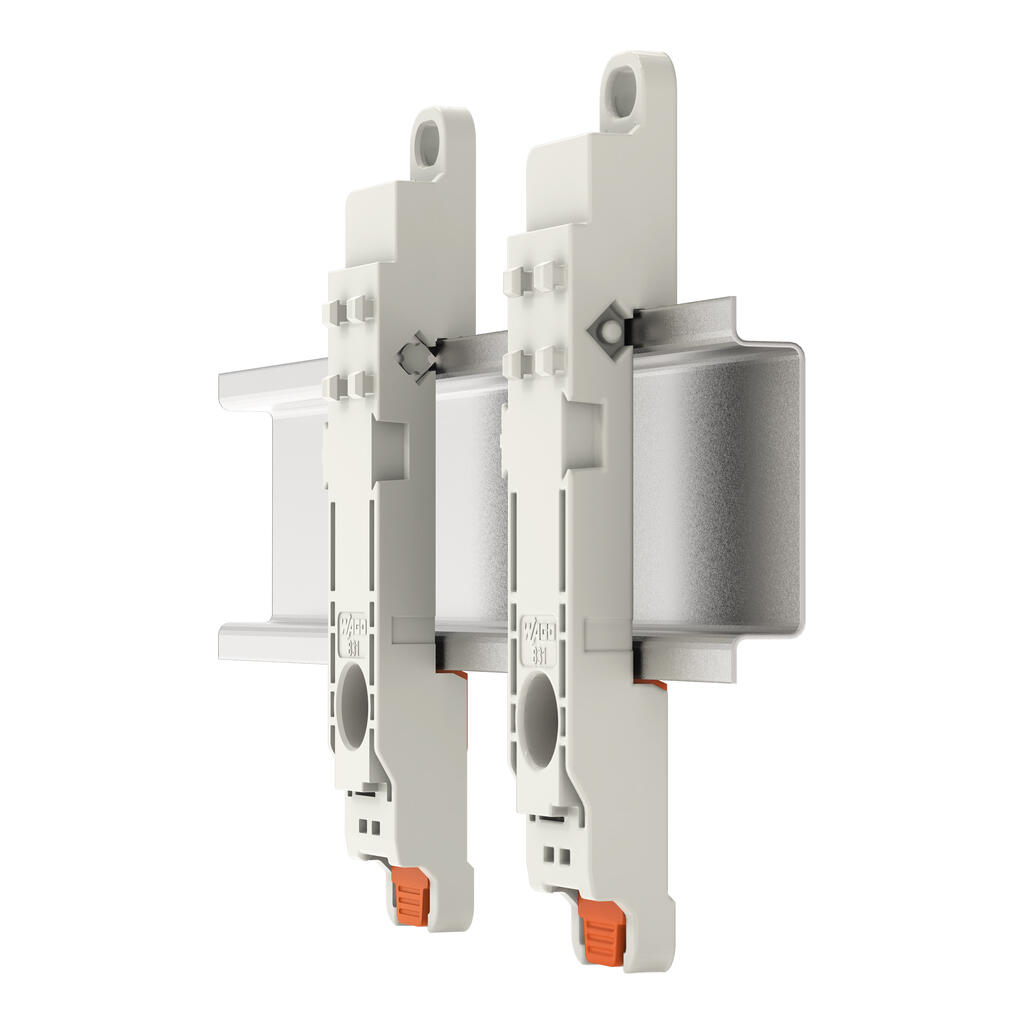

wago 831-1032

Mounting type

Panel mounting

质量

6.4g

Height from upper-edge of DIN-rail

6.6?mm?/ 0.26?inches

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polybutylene terephthalate (PBT)

Flammability class per UL94

V0

Fire load

0.232MJ

Limit temperature range

-60 … +105?°C

Processing temperature

-35 … +60?°C

ETIM 9.0

EC002848

ETIM 8.0

EC002848

ECCN

NO US CLASSIFICATION

PU (SPU)

12?pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966112405

Customs tariff number

3926909985

RoHS Compliance Status

Compliant,No Exemption

颜色

light gray

深度

88.4?mm?/ 3.48?inches

宽度

15.1?mm?/ 0.594?inches

高度

11.2?mm?/ 0.441?inches
