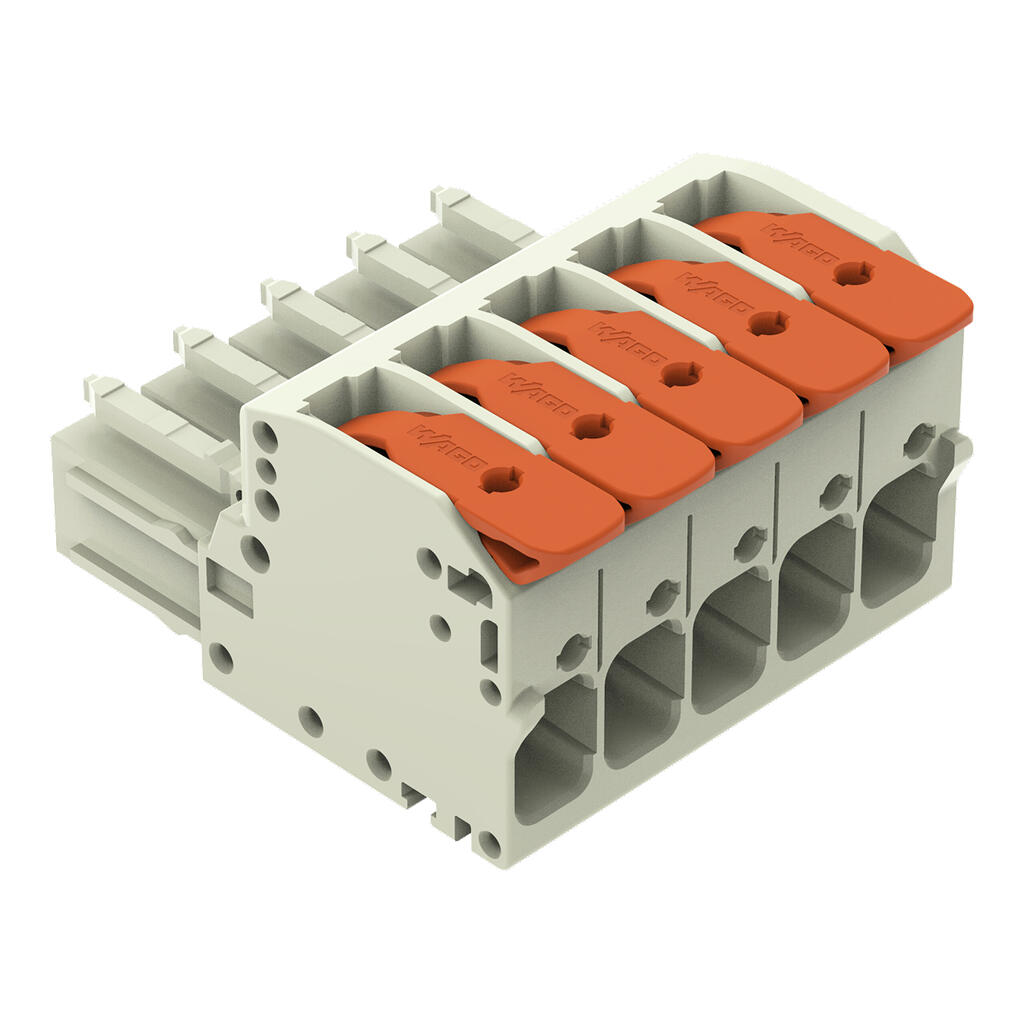

wago 831-1105/000-004

Contact plating

Tin

质量

32.5g

Clamping units

5

Anti-rotation protection

有

Contact type (pluggable connector)

Female connector/socket

Connector (connection type)

for conductor

Locking of plug-in connection

none

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact Materials

Electrolytic copper (ECu)

Fire load

0.661MJ

ActuatorColor

orange

Limit temperature range

-60 … +105 °C

ECCN

NO US CLASSIFICATION

Country of origin

DE

GTIN

4066966553383

Customs tariff number

85366990990

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Approvals per

CSA

Connection technology

Push-in CAGE CLAMP?

Actuation type

Lever

Fine-stranded conductor

0.5 … 10 mm2 / 20 … 8 AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 6 mm2

Fine-stranded conductor; with uninsulated ferrule

0.5 … 6 mm2

Conductor entry direction to mating direction

0°

Safety information

TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Variants

Other colors

Total number of potentials

5

Number of connection types

1

Pin spacing

7.62 mm / 0.3 inches

Variable coding

有

Mismating protection

有

Note (material data)

Information on material specifications can be found here

Material group

I

Processing temperature

-35 … +60 °C

PU (SPU)

12 pcs

Packaging type

Box

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

800V

Rated impulse voltage (III / 3)

8kV

Rated voltage (III/2)

1000V

Rated surge voltage (III/2)

8kV

Nominal voltage (II/2)

1000V

Rated surge voltage (II/2)

8kV

Rated voltage UL (Use Group C)

600V

Rated current UL (Use Group C)

37A

Rated voltage UL (Use Group D)

600V

Rated current UL (Use Group D)

5A

Rated voltage CSA (Use Group C)

600V

Rated current CSA (Use Group C)

35A

Rated voltage CSA (Use Group D)

600V

Rated current CSA (Use Group D)

5A

Solid conductor

0.5 … 10 mm2 / 20 … 8 AWG

Strip length

11 … 13 mm / 0.43 … 0.51 inches

颜色

black

深度

45.7 mm / 1.799 inches

Number of levels

1

Number of poles

5

Rated current

41A

高度

25 mm / 0.984 inches

宽度

40.0 mm / 1.575 inches
