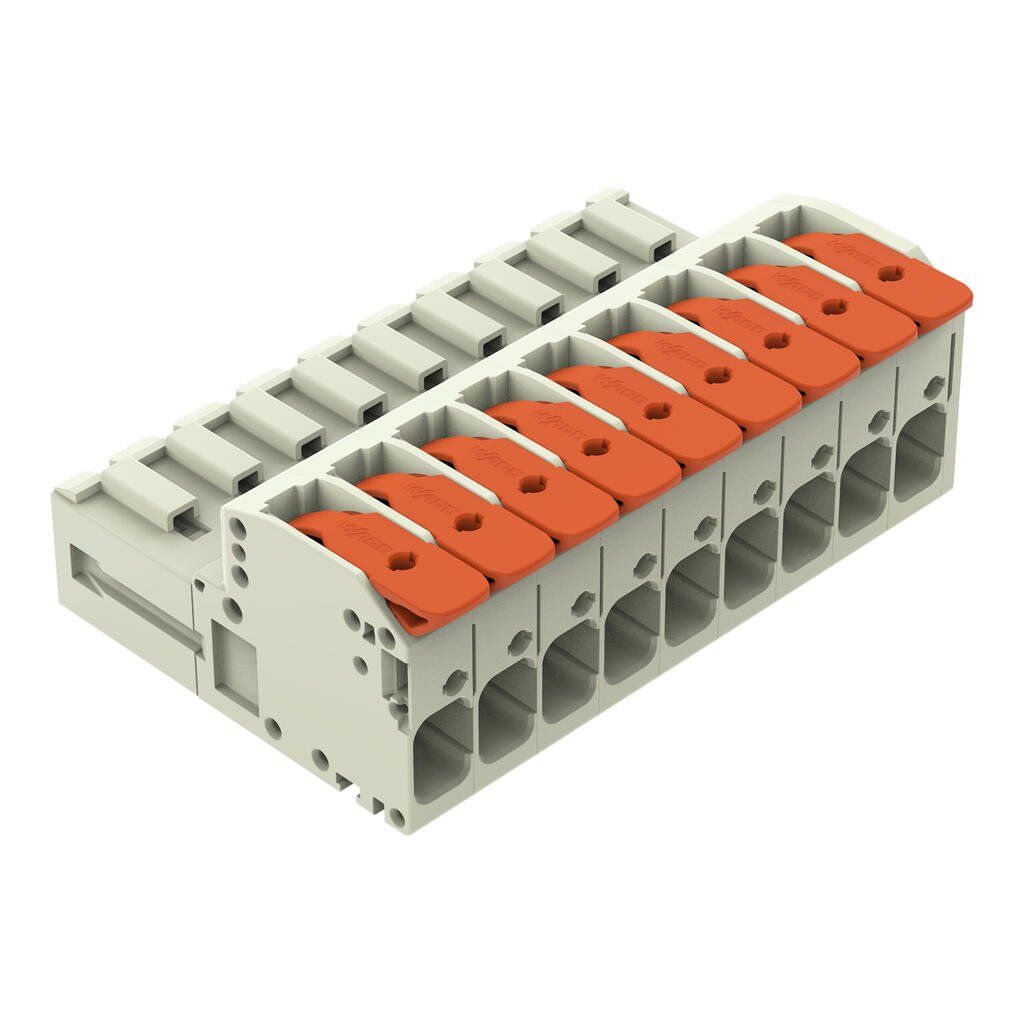

wago 831-1209/000-004

Contact plating

Tin

质量

54.5g

Safety information

TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.

Variants

Other colors

Clamping units

9

Total number of potentials

9

Number of connection types

1

Pin spacing

7.62 mm / 0.3 inches

Variable coding

有

Anti-rotation protection

有

Contact type (pluggable connector)

Male connector/plug

Connector (connection type)

for conductor

Mismating protection

有

Locking of plug-in connection

none

Note (material data)

Information on material specifications can be found here

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact Materials

Electrolytic copper (ECu)

Fire load

1.267MJ

ActuatorColor

orange

Limit temperature range

-60 … +105 °C

Processing temperature

-35 … +60 °C

ECCN

NO US CLASSIFICATION

PU (SPU)

12 pcs

Packaging type

Box

Country of origin

PL

GTIN

4066966590692

Customs tariff number

85366930000

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

800V

Rated impulse voltage (III / 3)

8kV

Rated voltage (III/2)

1000V

Rated surge voltage (III/2)

8kV

Nominal voltage (II/2)

1000V

Rated surge voltage (II/2)

8kV

Legend (ratings)

(III / 2) ? Overvoltage category III / Pollution degree 2

Approvals per

CSA

Rated voltage UL (Use Group C)

600V

Rated current UL (Use Group C)

37A

Rated voltage UL (Use Group D)

600V

Rated current UL (Use Group D)

5A

Rated voltage CSA (Use Group C)

600V

Rated current CSA (Use Group C)

35A

Rated voltage CSA (Use Group D)

600V

Rated current CSA (Use Group D)

5A

Connection technology

Push-in CAGE CLAMP?

Actuation type

Lever

Solid conductor

0.5 … 10 mm2 / 20 … 8 AWG

Fine-stranded conductor

0.5 … 10 mm2 / 20 … 8 AWG

Fine-stranded conductor; with insulated ferrule

0.5 … 6 mm2

Fine-stranded conductor; with uninsulated ferrule

0.5 … 6 mm2

Strip length

11 … 13 mm / 0.43 … 0.51 inches

Conductor entry direction to mating direction

0°

颜色

black

深度

49.2 mm / 1.937 inches

Number of levels

1

Number of poles

9

Rated current

41A

宽度

71.5 mm / 2.8 inches

高度

25 mm / 0.984 inches
