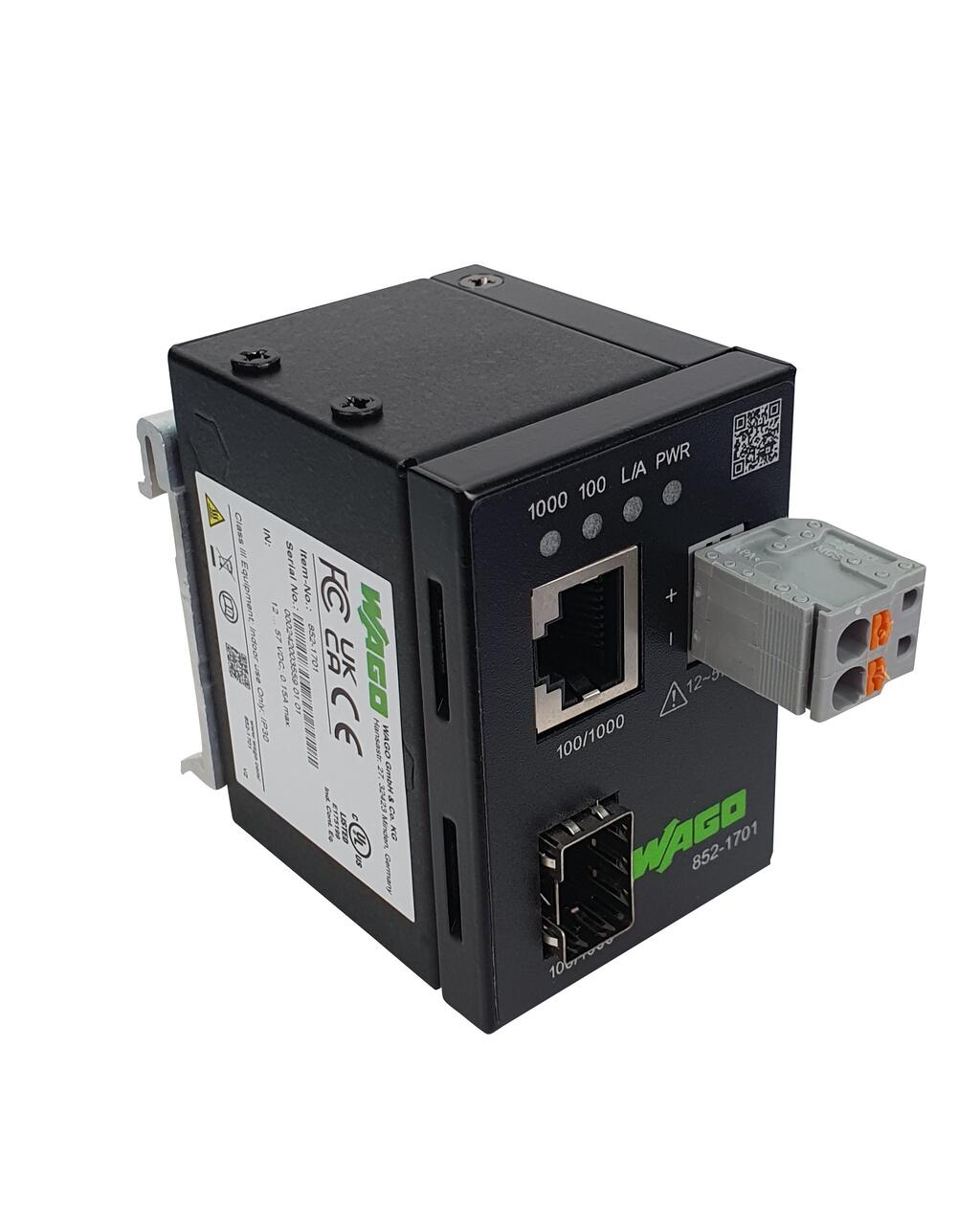

wago 852-1701

Mounting type

DIN-35 rail

Housing material

Sheet steel

质量

169.6g

Number of 1 Gb/s ports

1

Number of 1 Gb/s ports SFP

1

Communication standards

IEEE 802.3u 100BASE-TX/FX

Jumbo frame size

16000.Byte

Power consumption without PoE

6W

Transmission rate

Copper cable: 100/1000 Mbit/s; Fiber optic:100/1000 Mbit/s

Transmission medium (communication/fieldbus)

Copper cable: Cat. 5e or higher, 100 m maximum cable length; Fiber optic: SX Multi-Mode, LX Single-Mode

Optical fiber type

Single-mode and multi-mode

Indicators

Device: LED (PWR) green: Supply voltage; T-port: LED (100/1000) green: Status 1000 Mbit/s, LNK/ACT port; SFP port: LED (1000, 100, L/A) green: Status 100/1000 Mbit/s, LNK/ACT port

Connection technology: communication/fieldbus

Copper cable: 1 x RJ-45; Fiber optic: 1 x SFP slots (e.g., with SFP module and LC fiber-optic connector)

Connection technology: supply

1 x Built-in male connector: 231-432/001-000; included female connector (MCSConnectors): 2231-102/026-000

Conformity marking

CE

Ambient temperature (operation)

-40 … +75 °C

Ambient temperature (storage)

-40 … +80 °C

Protection type

IP30

Relative humidity (without condensation)

95%

Vibration resistance

per IEC 60068-2-6

EMC immunity to interference

Per EN IEC 61000-6-2

EMC emission of interference

Per EN IEC 61000-6-4

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

TW

GTIN

4066966511758

Customs tariff number

85176200000

RoHS Compliance Status

Compliant,No Exemption

颜色

black

Supply voltage

12 … 57 VDC

深度

50 mm / 1.97 inches

拓扑

Star

Shock resistance

per IEC 60068-2-27

宽度

60.5 mm / 2.38 inches

高度

42.5 mm / 1.67 inches
