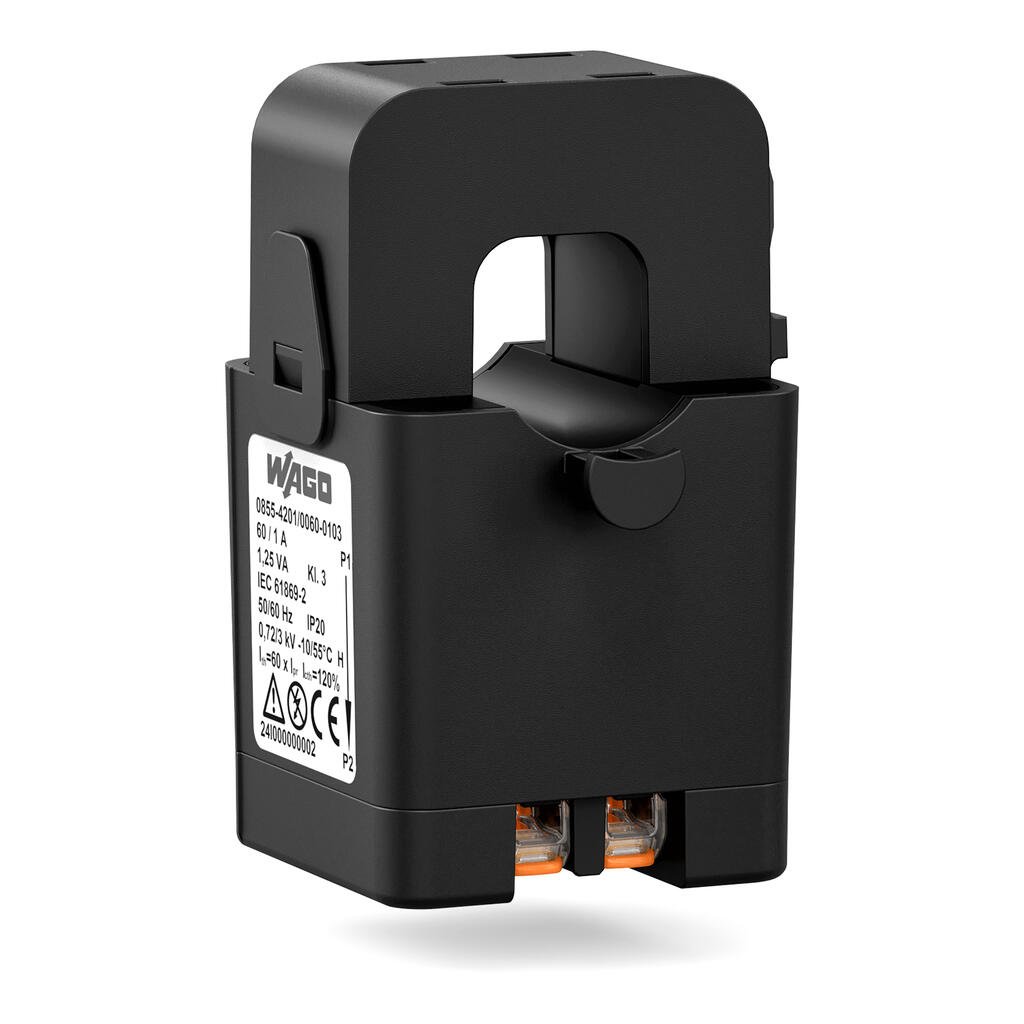

wago 855-4209/060-003

Mounting type

Split-core current transformer (suspended)

质量

285g

Protection type

IP20

Highest voltage for equipment U_m

AC 720 Vrms

Feedthrough for measurement conductor

? 18 mm

Ambient temperature (operation)

-10 … +55 °C

Ambient temperature (storage)

-20 … +70 °C

Relative humidity

5 … 85 % (without condensation)

Operating altitude (max.)

2000m

Conformity marking

CE

Standards/specifications

EN 61869-1

ETIM 9.0

EC002048

ETIM 8.0

EC002048

ECCN

NO US CLASSIFICATION

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

CZ

Customs tariff number

85043129900

RoHS Compliance Status

Compliant,No Exemption

Measured variable

Current

Rated continuous thermal current I_cth

100 %

Rated short-time thermal current I_th

60 x IN/ 1 s

Rated surge current I_dyn

2.5 x Ith

Rated frequency

50 … 60 Hz

Primary rated current

60 A

Output signal (voltage)

333 mV

Connection type 2

Secondary

Connection technology 2

CAGE CLAMP?

WAGO connector 2

WAGO 221-2411

Actuation type 2

Lever

Strip length 2

11 mm / 0.43 inches

Solid conductor 2

0.2 … 4 mm2 / 20 … 14 AWG

Fine-stranded conductor 2

0.2 … 4 mm2 / 18 … 14 AWG

深度

44.6 mm / 1.76 inches

Test voltage

AC 3 kV; 50 Hz; 1 min

Accuracy class

3

宽度

59.6 mm / 1.95 inches

高度

82.6 mm / 3.25 inches
