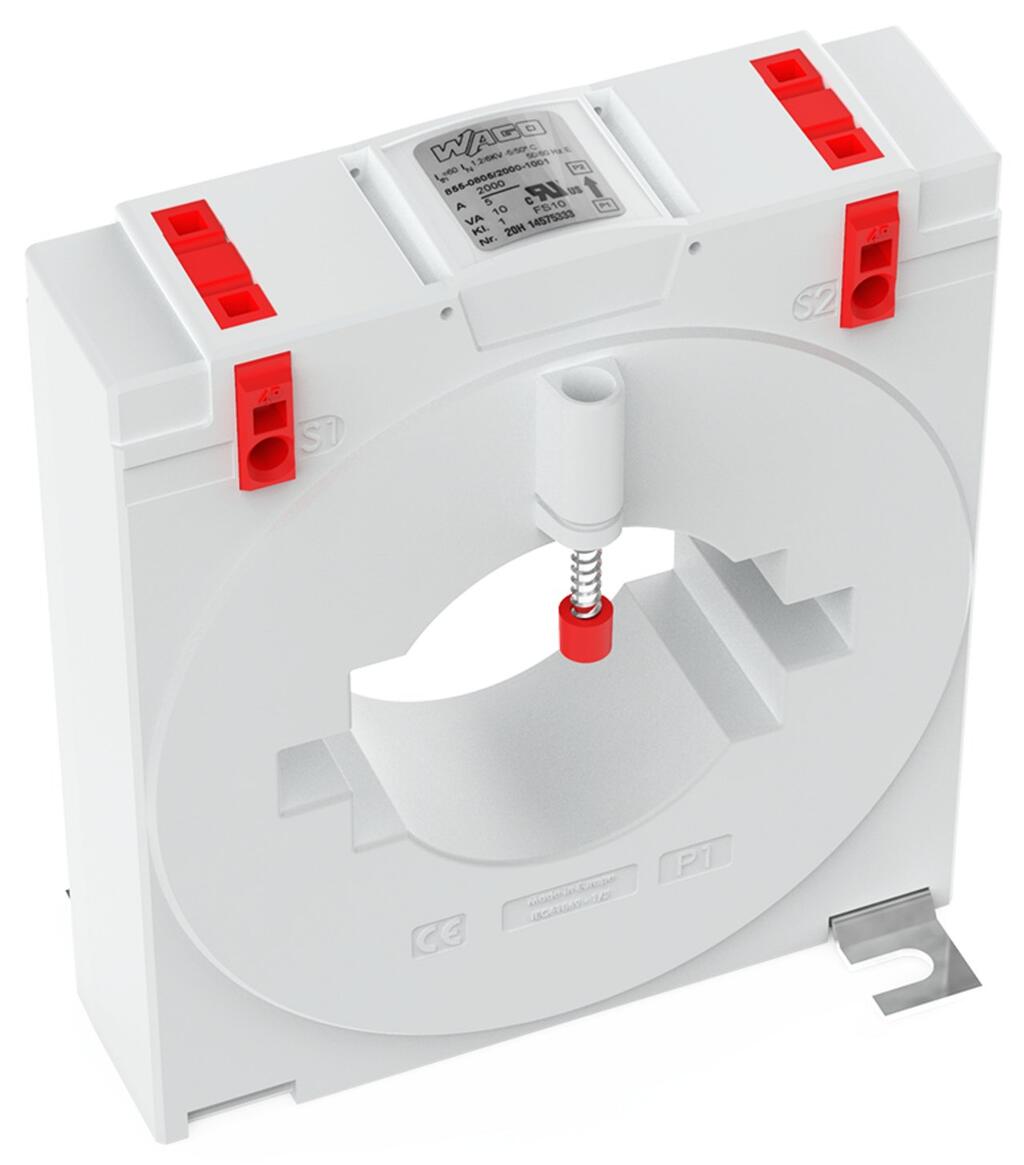

wago 855-801/2000-1001

Mounting type

Closed current transformer

质量

396g

Highest voltage for equipment U_m

AC 1.2?kVrms

Feedthrough for measurement conductor

? 55 mm

Insulation class

E

Ambient temperature (operation)

-5 … +50 °C

Ambient temperature (storage)

-25 … +70 °C

Operating altitude (max.)

1000m

Conformity marking

CE

Standards/specifications

EN 61869-1

eCl@ss 10.0

27-21-09-02

eCl@ss 9.0

27-21-09-02

ETIM 9.0

EC002048

ETIM 8.0

EC002048

ECCN

NO US CLASSIFICATION

PU (SPU)

1?pcs

Packaging type

Box

Country of origin

HU

Customs tariff number

85043129900

RoHS Compliance Status

Compliant,No Exemption

Measured variable

Current

Rated continuous thermal current I_cth

1.2 x IN

Rated short-time thermal current I_th

60 x IN/ 1 s (max. 100 kA / 1 s)

Overcurrent limiting factor

FS5 / FS10 (type dependent; see type plate inscription)

Rated frequency

50 … 60?Hz

Primary rated current

2000?A

Secondary rated current

1A

Rated power S_r

10VA

Connection technology

CAGE CLAMP?

Strip length

9 … 10 mm / 0.35 … 0.39 inches

Solid conductor

0.08 … 4 mm2 / 28 … 12 AWG

Fine-stranded conductor

0.08 … 4 mm2 / 28 … 12 AWG

深度

52?mm?/ 2.047?inches

Test voltage

AC 6?kV;?50?Hz;?1?min

Accuracy class

1

宽度

120?mm?/ 4.724?inches

高度

134.4?mm?/ 5.291?inches
