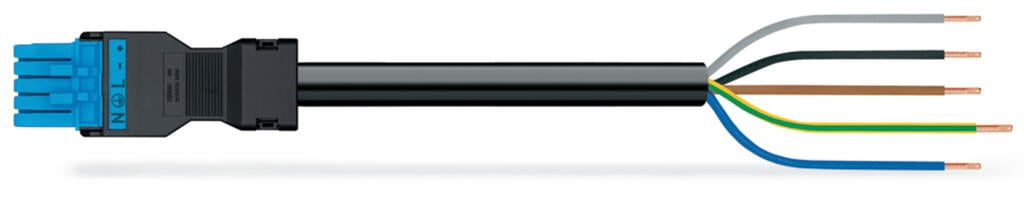

wago 891-8385/166-301

Contact plating

Tin

质量

490.3g

Total number of potentials

5

Conductor preparation

ultrasonically tip-bonded

Pin spacing

4.4?mm?/ 0.173?inches

Strain relief color

black

Sheathed cable color

black

Printing color of sheathed cable

white

Halogen-free

有

Silicon-free

有

Sheath material

Halogen-free

Rubber cable

无

Copper weight of the pipe

0.072kg/m

Processing temperature

-5 … +40?°C

Continuous operating temperature

-35 … +85?°C

Note on continuous operating temperature

Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C

ETIM 9.0

EC002587

ETIM 8.0

EC002587

ECCN

NO US CLASSIFICATION

PU (SPU)

1?pcs

Packaging type

unpacked

Country of origin

PL

GTIN

4055143840538

Customs tariff number

8544429090

RoHS Compliance Status

Compliant,No Exemption

Ratings per

IEC/EN 60664-1

Rated voltage (III / 3)

400V

Rated impulse voltage (III / 3)

6kV

Legend (ratings)

(III / 3) ? Overvoltage category III / Pollution degree 3

Note on contact resistance

approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket

Strip length

9?mm?/ 0.35?inches

Wire cross-section

1.5mm2

Strip length (outer insulation)

45mm

Connector color

blue

Fire load

44.408MJ

Contact Materials

Copper or copper alloy; surface-treated

Fire class per EN 50575

Cca

Flammability class per UL94

V0

Insulation material (main housing)

Polyamide (PA66)

Note (material data)

Information on material specifications can be found here

Note on locking system

All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).

Locking of plug-in connection

locking lever

Locking lever

Can be retrofitted

Note on mismating protection

AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole

Mismating protection

有

Protection type

IP40

Cable Types

H05Z1Z1-F 5G1.5

Type of pre-assembled cable

Connecting cable

Number of mating cycles

200, without resistive load

Unmating force of a plug-in connection

when unlocked: approx. 20 … 70 N (depending on pole number)

Retention force of a plug-in connection

when locked: > 80N

Mating force of a plug-in connection

approx. 20 … 70 N (depending on pole number)

Potential Marking

N ? L - +

Marking

N ? L - +

Variable coding

无

Coding

I

Use

DALI, Lighting Management

注意

Cables with a different fire class can be found in the eShop.

Number of poles

5

Rated current

16A

Connection type

Socket - Free end

Total length

3m

宽度

26.7?mm?/ 1.051?inches

高度

15.8?mm?/ 0.622?inches
