ZETTLER 503608

Coil nominal voltage

6V DC

Min. pick-up voltage

4.5V DC

Max. pick-up voltage

13.4V DC

Resistance (coil)

100Ω

Contact Materials

AgSnO

Switching voltage (max.)

30V DC,300V AC

Switching current (max.)

15A

Max. switching capacity

210W,2770VA

Connections

Solder pins

Insulation voltage

(Coil/contact) 1500 V/(contacts) 1000V

Electrical lifespan

1 x 10⁵ Switching processes

Min. temperature

-40°C

Max. temperature

+70°C

Dim

(L x W x H) 19 x 15.3 x 15.7 mm

Content

1pc(s)

RoHS-compliant

有

Nominal voltage (details)

6V DC

类型

AZ943-1CH-6DE

Contact type

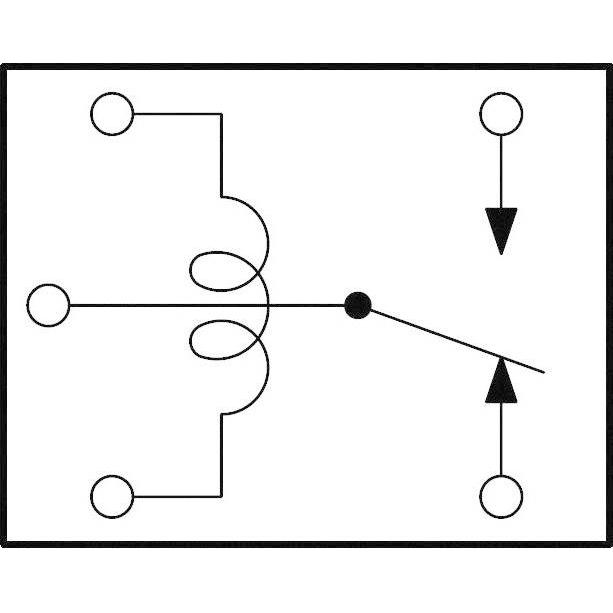

1 change-over

Insulation resistance

(500 V/DC) <Min/> 100MΩ

耐用性

1 x 10⁶ Switching processes

Control mode

monostable, 1 coil

Temperature range

-40 - +70°C

Switching current

<br> <Max/> 15A

Switching capacity

<br> <Max/> 2770 VA/210W

长度

19mm

宽度

15.3mm

高度

15.7mm
