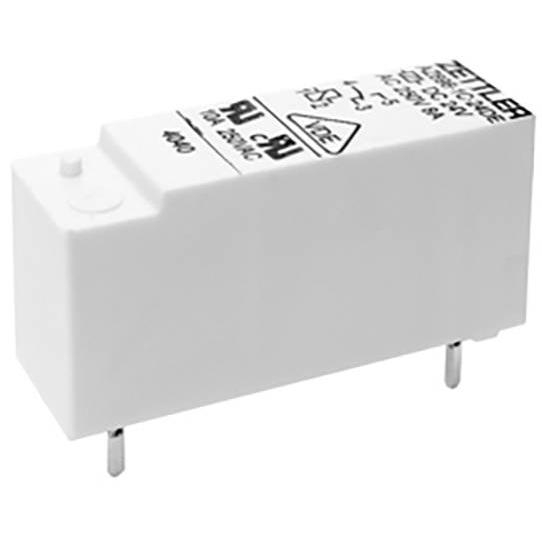

ZETTLER AZ696-1CE-5DE

Coil nominal voltage

5V DC

Resistance (coil)

110Ω

Contact Materials

AgSnO₂

Switching voltage (max.)

240V DC,440V AC

Switching current (max.)

10A

Max. switching capacity

300W

Connections

Solder pins

Fall time

5ms

Min. temperature

-40°C

Max. temperature

+85°C

Dim

(L x W x H) 30 x 10 x 16.2 mm

Content

1pc(s)

Rohs Code

有

Manufacturer Part Number

AZ696-1CE-5DE

Manufacturer

American ZETTLER Inc

Part Life Cycle Code

活跃

Ihs Manufacturer

AMERICAN ZETTLER INC

Risk Rank

5.65

ECCN 代码

EAR99

类型

AZ696-1CE-5DE

Contact type

1 change-over

Reach合规守则

compliant

耐用性

1 x 10E7

Response time

10ms

Control mode

monostable, 1 coil

继电器类型

POWER/SIGNAL RELAY

长度

30mm

宽度

10mm

高度

16.2mm
