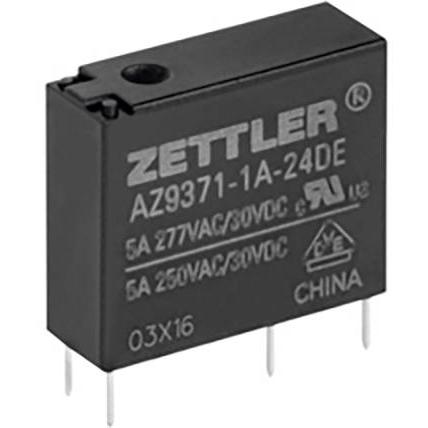

ZETTLER AZ9371-1A-5DE

底架

通孔

Coil nominal voltage

5V DC

Resistance (coil)

125Ω

Contact Materials

AgNi

Switching voltage (max.)

30V DC,277V AC

Switching current (max.)

5A

Max. switching capacity

150W

Connections

Solder pins

Fall time

3ms

Min. temperature

-40°C

Max. temperature

+105°C

Dim

(L x W x H) 20.5 x 7.2 x 15.3 mm

Content

1pc(s)

CoilResistance

125 Ω

RoHS

Non-Compliant

类型

AZ9371-1A-5DE

Contact type

1 maker

触点电阻

100 mΩ

最大额定电流

5 A

耐用性

5 x 10E6

投掷配置

SPST

Response time

6ms

Control mode

monostable, 1 coil

线圈电压(DC)

5 V

长度

20.5mm

宽度

7.2mm

高度

15.3mm
