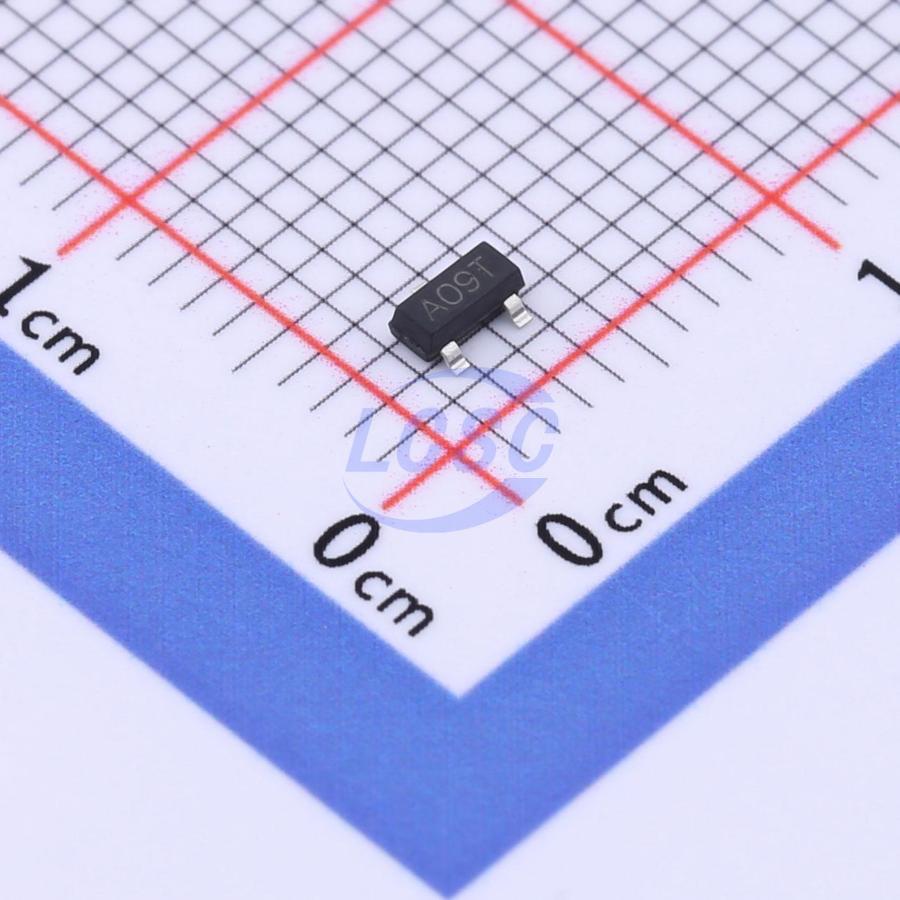

A Power microelectronics AP3400CI

RoHS

true

Drain Source Voltage (Vdss)

30V

Drain Source On Resistance (RDS(on)@Vgs,Id)

32mΩ@10V,4A

Power Dissipation (Pd)

1.1W

Gate Threshold Voltage (Vgs(th)@Id)

900mV@250uA

Reverse Transfer Capacitance (Crss@Vds)

27pF@15V

Input Capacitance (Ciss@Vds)

285pF@15V

Total Gate Charge (Qg@Vgs)

[email protected]

Package

Tape & Reel (TR)

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

4.2A
