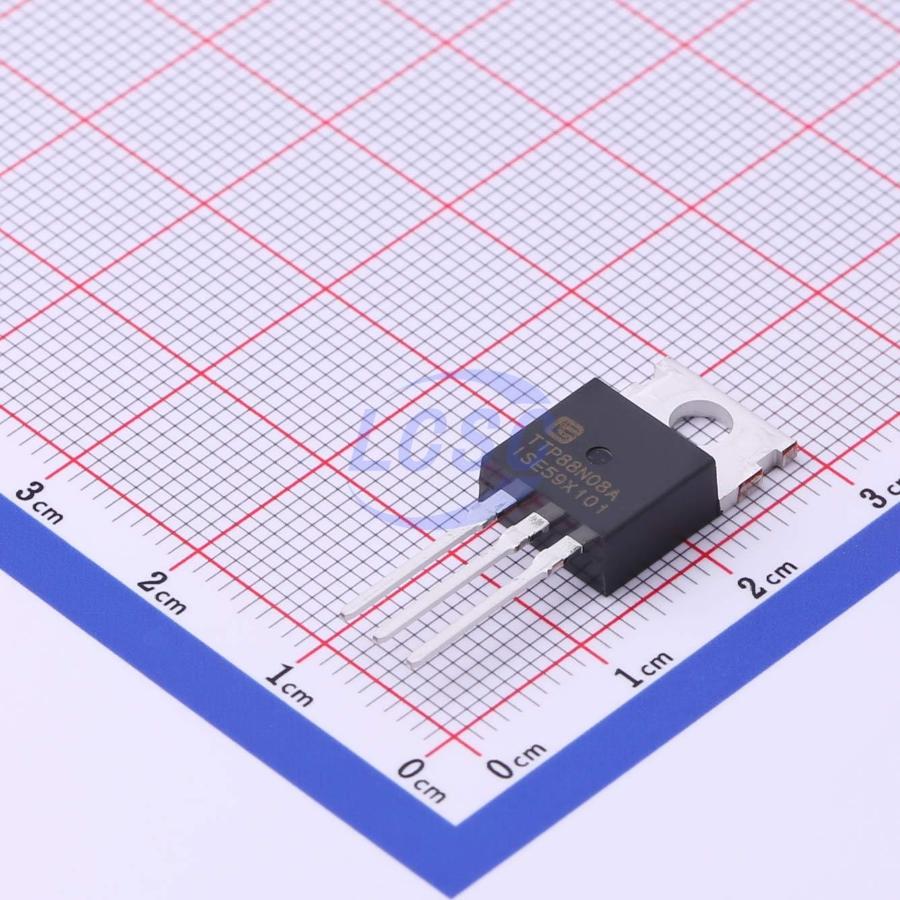

WUXI UNIGROUP MICRO TTP88N08A

RoHS

true

Drain Source Voltage (Vdss)

82V

Drain Source On Resistance (RDS(on)@Vgs,Id)

7.4mΩ@10V,30A

Power Dissipation (Pd)

174W

Gate Threshold Voltage (Vgs(th)@Id)

3V@250uA

Reverse Transfer Capacitance (Crss@Vds)

241pF@40V

Input Capacitance (Ciss@Vds)

5.341nF@40V

Total Gate Charge (Qg@Vgs)

100nC@10V

Package

Tube-packed

操作温度

-55℃~+175℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

88A
