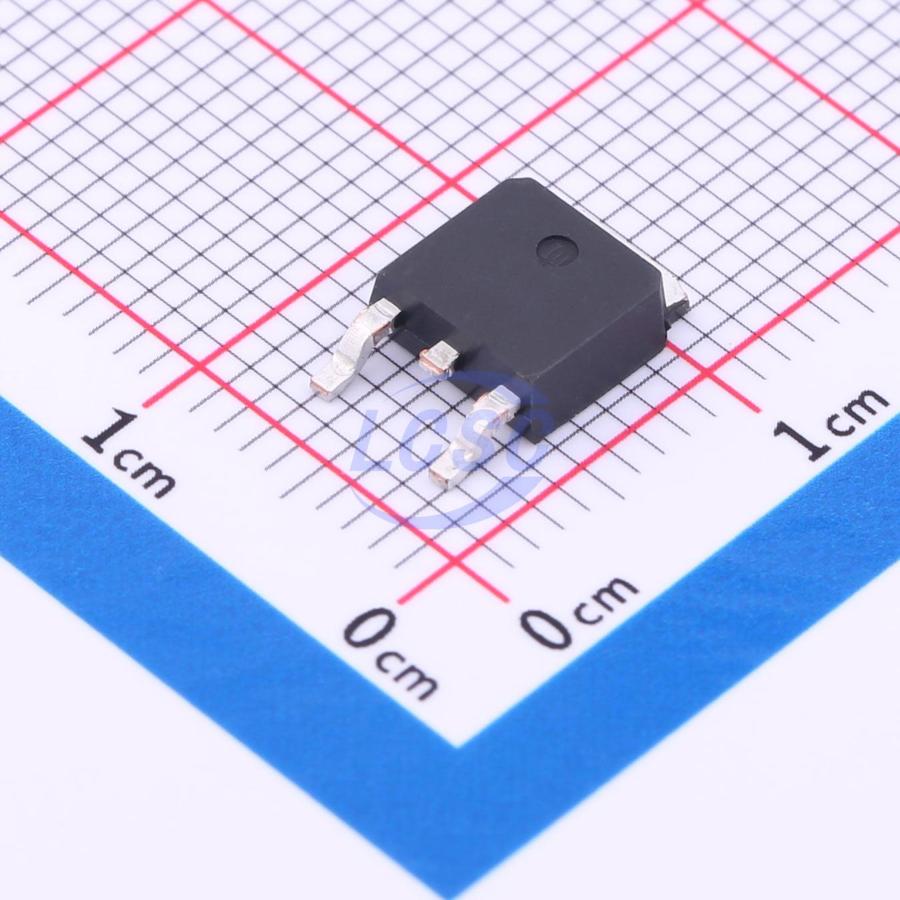

A Power microelectronics AP50N06BD

RoHS

true

Drain Source Voltage (Vdss)

60V

Power Dissipation (Pd)

45W

Drain Source On Resistance (RDS(on)@Vgs,Id)

16mΩ@10V,20A

Gate Threshold Voltage (Vgs(th)@Id)

1.6V@250uA

Reverse Transfer Capacitance (Crss@Vds)

85pF@15V

Input Capacitance (Ciss@Vds)

1.68nF@15V

Total Gate Charge (Qg@Vgs)

[email protected]

Package

Tape & Reel (TR)

操作温度

-55℃~+150℃@(Tj)

类型

1 N-Channel

Continuous Drain Current (Id)

50A
