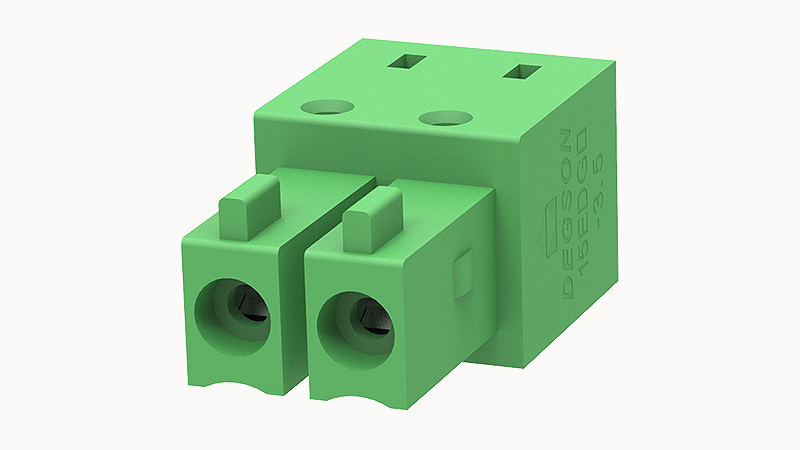

DEGSON 15EDGB-3.5-02P

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

2

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

90°

Rated surge voltage(II/2)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(III/3)

2.5KV

Rated current(II/2)

320V

Rated current(III/2)

250V

Rated current(III/3)

160V

Rated current (D)

8A

Rated current (B)

8A

Rated voltage (D)

300V

Rated voltage (B)

300V

Number of rows

1

螺距

3.5mm

Rated current

7A

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
