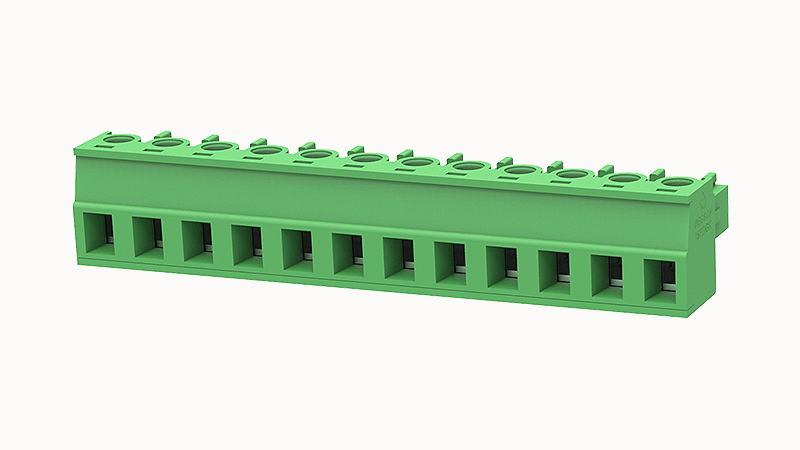

DEGSON 15EDGK-5.08-12P

Products weight (without packaging)

9.32

Packing unit

450

Operating tool

/

Marking strip

/

Bridge

/

Coding strip

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

Nickel plating

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

12

Screwdriver

Slotted screwdriver

Connection direction

0°

Rated surge voltage(II/2)

4KV

Rated voltage(II/2)

450V

Rated current (D)

8A

Rated current (B)

8A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

7mm

Torque

0.2N.m

AWG

28~16AWG

Conductor cross section flexible

0.5~1.5mm²

Conductor cross section solid

0.5~1.5mm²

Number of rows

1

螺距

5.08mm

UL可燃性规范

UL94V-0

Rated current

7A

screw thread

M2

Connection method

Screw connection

Rated voltage

450V
