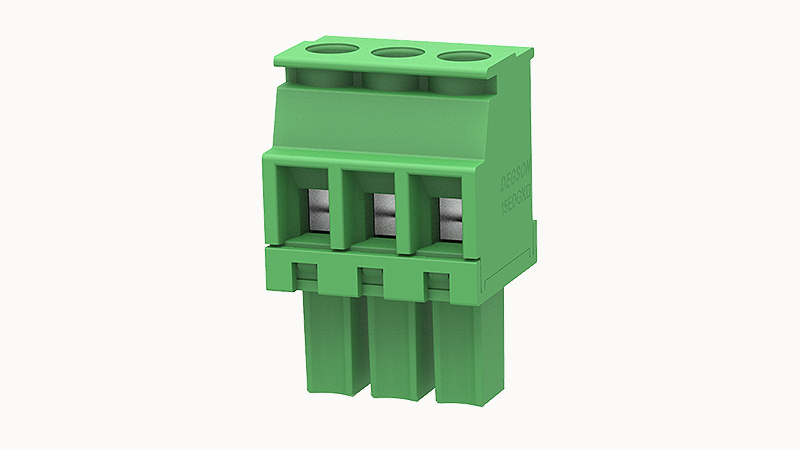

DEGSON 15EDGKB-3.81-03P

Conductor cross section solid

0.5~1.5mm²

Conductor cross section flexible

0.5~1.5mm²

AWG

28~16AWG

Torque

0.2N.m

Strip length

7mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

8A

Rated current (D)

8A

Rated voltage(II/2)

250V

Rated surge voltage(II/2)

2.5KV

Connection direction

90°

Screwdriver

Slotted screwdriver

Number of potentials

3

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

Nickel plating

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Operating tool

/

Coding strip

/

Bridge

DG032-3.81

Marking strip

/

Packing unit

200

Products weight (without packaging)

2.52

Number of rows

1

螺距

3.81mm

Rated current

7A

screw thread

M2

Connection method

Screw connection

Rated voltage

250V

Flammability rating

UL94V-0
