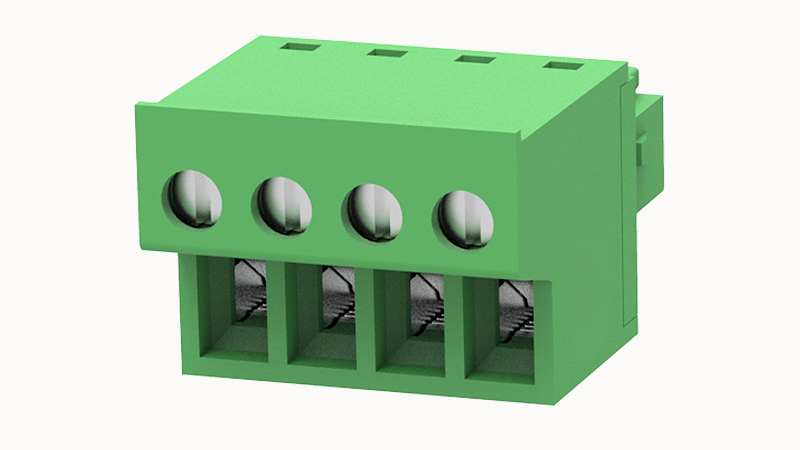

DEGSON 15EDGKC-3.81-04P

Number of potentials

4

Screwdriver

Slotted screwdriver

Connection direction

0°

Rated surge voltage(III/2)

2.5KV

Rated voltage(III/2)

160V

Rated current (D)

8A

Rated current (B)

8A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

7mm

Torque

0.2N.m

AWG

30~16AWG

Conductor cross section flexible

0.75~1.5mm²

Conductor cross section solid

0.5~1.5mm²

Products weight (without packaging)

5.417

Packing unit

150

Marking strip

/

Bridge

/

Coding strip

/

Operating tool

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of rows

1

螺距

3.81mm

Rated current

8A

screw thread

M2

Connection method

Screw connection

Rated voltage

160V

Flammability rating

UL94V-0
