DEGSON 15EDGKDM-3.81-02P
- 收藏
- 对比
15EDGKDM-3.81-02P
637-15EDGKDM-3.81-02P
端子板 - 针座，插头和插座
--
大陆
立即发货

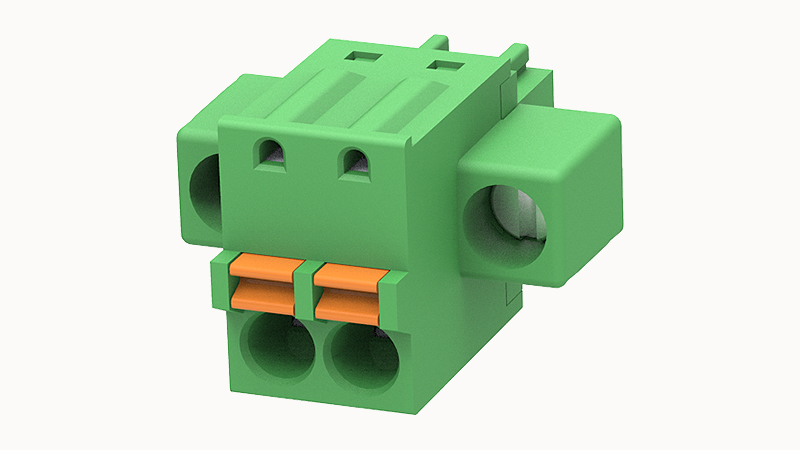

Pluggable terminal blocks,Rated current:12A.Rated voltage （Ⅲ/2）:250V,Cross section:1.5mm²,pitch:3.81mm,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
15EDGKDM-3.81-02P详情
DEGSON 15EDGKDM-3.81-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.2~1.5mm²
Conductor cross section flexible
0.2~1.5mm²
AWG
28~16AWG
Torque
0.4N.m
Strip length
9mm
Rated voltage (B)
300V
Rated voltage (C)
300V
Rated voltage (D)
300V
Rated current (B)
8A
Rated current (D)
8A
Rated current (C)
8A
Rated current(III/2)
250V
Rated surge voltage(III/2)
2.5KV
Connection direction
0°
Number of potentials
2
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
tin-plated
Contact zone metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC61984/ UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
3.81mm
Rated current
12A
Connection method
Push-in spring connection
Rated voltage
250V
Flammability rating
UL94V-0
