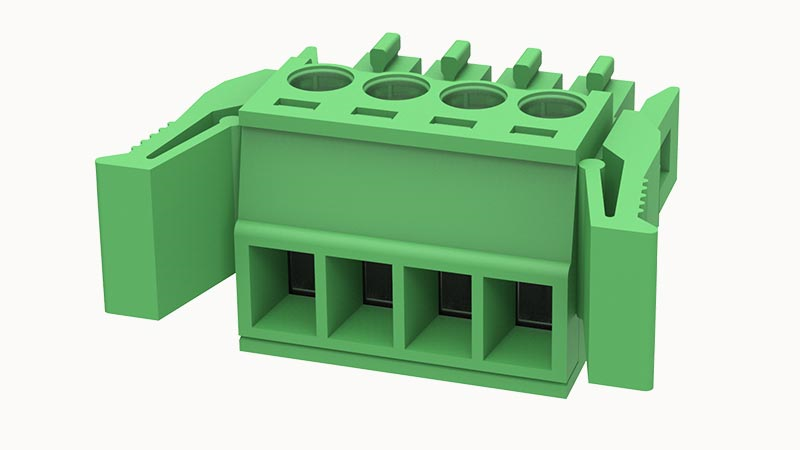

DEGSON 15EDGKG-3.5-04P

Ambient temperature (operation)

-40℃~105℃

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Shell color

green

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

4

Screwdriver

Slotted screwdriver

Connection direction

0°

Rated surge voltage(II/2)

2.5KV

Rated current(II/2)

250V

Rated current (D)

8A

Rated current (B)

8A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

7mm

Torque

0.2N.m

AWG

28~16AWG

feeler gauge a x b／diameter

2.4mm x1.5mm/1.6mm

Conductor cross section flexible

0.5~1.5mm²

Conductor cross section solid

0.5~1.5mm²

Type of packaging

bag packaging

Sea level impulse withstanding voltage

2.95kV

Number of rows

1

螺距

3.5mm

UL可燃性规范

UL94V-0

Rated current

7A

screw thread

M2

Connection method

Screw connection

Rated voltage

250V
