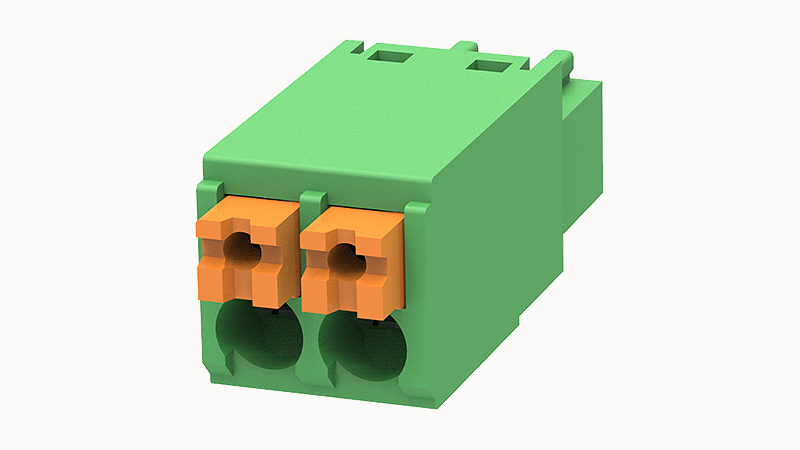

DEGSON 15EDGKN-3.5-02P
- 收藏
- 对比
15EDGKN-3.5-02P
637-15EDGKN-3.5-02P
端子板 - 针座，插头和插座
--
大陆
立即发货
Pluggable terminal blocks,Rated current:8A.Rated voltage （Ⅲ/2）:250V,Cross section:1.0mm²,pitch:3.5mm,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
15EDGKN-3.5-02P详情
DEGSON 15EDGKN-3.5-02P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.2~1.0mm²
Conductor cross section flexible
0.2~1.0mm²
AWG
28~16AWG
Strip length
10mm
Rated voltage (B)
300V
Rated voltage (D)
300V
Rated current (B)
8A
Rated current (D)
8A
Rated current(III/2)
250V
Rated surge voltage(III/2)
2.5KV
Connection direction
0°
Number of potentials
2
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
tin-plated
Contact zone metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC61984/ UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
1
螺距
3.5mm
Rated current
8A
Connection method
Push-in spring connection
Rated voltage
250V
Flammability rating
UL94V-0
