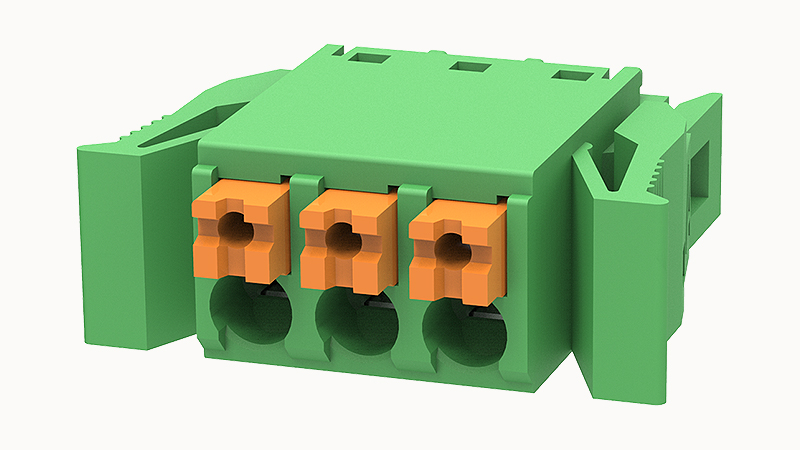

DEGSON 15EDGKNG-3.81-03P
- 收藏
- 对比
15EDGKNG-3.81-03P
637-15EDGKNG-3.81-03P
端子板 - 针座，插头和插座
--
大陆
立即发货
Pluggable terminal blocks,Rated current:8A.Rated voltage （Ⅲ/2）:250V,Cross section:1.0mm2,pitch:3.81mm,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
15EDGKNG-3.81-03P详情
DEGSON 15EDGKNG-3.81-03P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Products weight (without packaging)
2.1152
Packing unit
250
Screwdriver
/
Operating tool
/
Marking strip
/
Bridge
/
Coding strip
/
Ambient temperature (operation)
-40℃~105℃(depending on derating curve)
Test Specification
IEC61984/ UL1059
Insulating material group
Ⅰ
Insulation Materials
PA66
Contact zone metal surface
tin-plated
Contact Materials
Copper alloy
Environmental items
Compliant with REACH/RoHS
Pluggable or not
有
Number of potentials
3
Connection direction
0°
Rated surge voltage(II/2)
2.5KV
Rated surge voltage(III/2)
2.5KV
Rated surge voltage(III/3)
2.5KV
Rated voltage(II/2)
250V
Rated voltage(III/2)
160V
Rated voltage(III/3)
160V
Rated current (D)
8A
Rated current (B)
8A
Rated voltage (D)
300V
Rated voltage (B)
300V
Strip length
10mm
AWG
28~16AWG
Conductor cross section flexible
0.2~1.0mm²
Conductor cross section solid
0.2~1.0mm²
Number of rows
1
螺距
3.81mm
UL可燃性规范
UL94V-0
Rated current
8A
Connection method
Push-in spring connection
Rated voltage
160V
