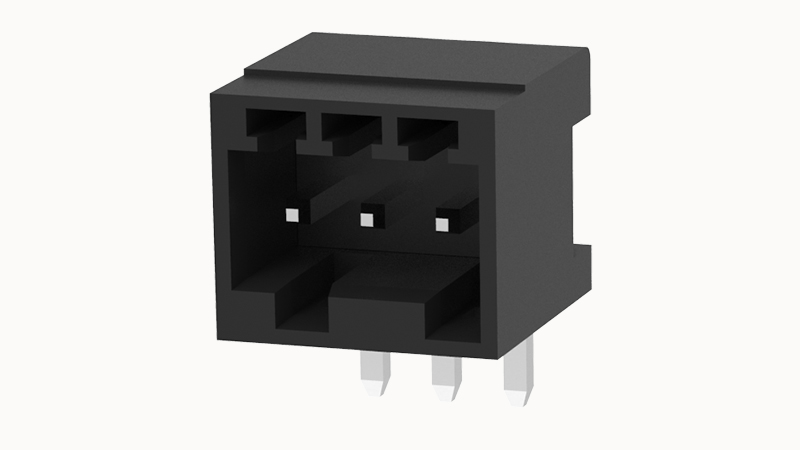

DEGSON 15EDGRC-THR-2.5-03P

Rated voltage (B)

150V

Rated current (B)

4A

Rated current(III/2)

250V

Rated surge voltage(III/2)

2.5KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

3

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

High temperature resistant materials

Insulating material group

Ⅲa

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~130℃

Number of rows

1

螺距

2.5mm

Rated current

5A

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
