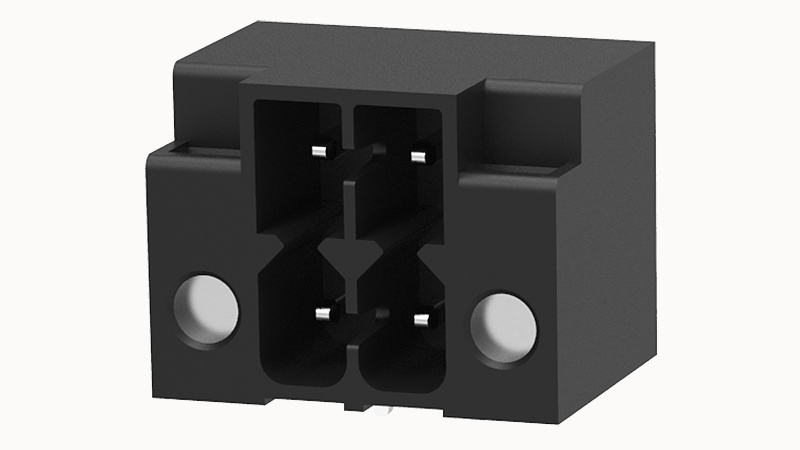

DEGSON 15EDGRHCM-THR-3.5-04P

Rated voltage (B)

300V

Rated current (B)

8A

Rated current (C)

8A

Rated current(III/3)

200V

Rated current(III/2)

250V

Rated current(II/2)

320V

Rated surge voltage(III/3)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(II/2)

2.5KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

4

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

High temperature resistant materials

Insulating material group

Ⅲa

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~130℃

Ambient temperature (storage/transportation)

-40℃~70℃

Number of rows

1

螺距

3.5mm

Rated current

8A

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
