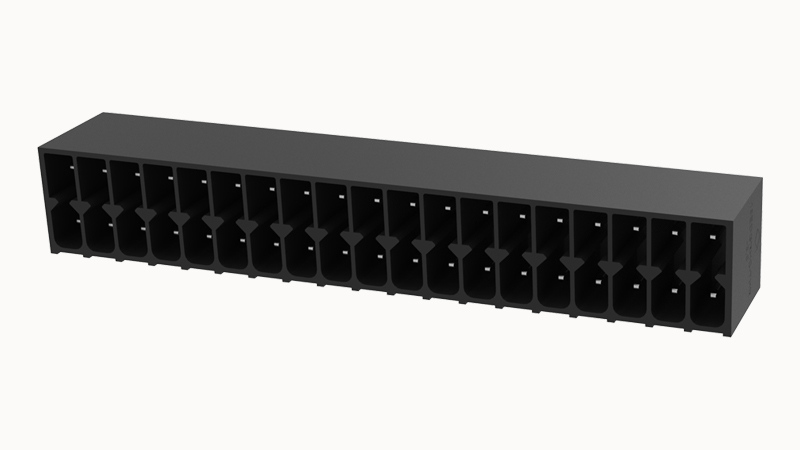

DEGSON 15EDGRHC-THR-3.5-38P

Type of packaging

box-packed

Rated voltage (B)

150V

Rated current (B)

8A

Rated current (C)

8A

Rated voltage(III/3)

80V

Rated voltage(III/2)

200V

Rated voltage(II/2)

320V

Rated surge voltage(III/3)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(II/2)

2.5KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

38

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

High temperature resistant materials

Insulating material group

Ⅲa

Test Specification

IEC60947/UL1059

Relative humidity (storage/transport)

30% ~ 70%

Ambient temperature (assembly)

-5℃~100℃

Ambient temperature (operation)

-40℃~130℃(depending on derating curve)

Ambient temperature (storage/transportation)

-40℃~70℃

Screwdriver

/

Operating tool

/

Coding strip

15EDGKNH-PWI

Bridge

/

Marking strip

/

Packing unit

245

Products weight (without packaging)

7.07

Number of rows

2

螺距

3.5mm

Rated current

9.5A

Rated voltage

200V

过程

Reflow soldering/wave soldering/manual soldering

Flammability rating

UL94V-0
