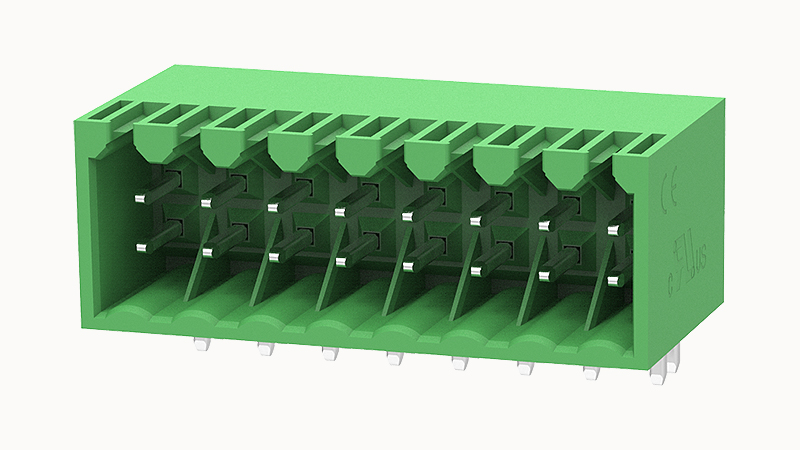

DEGSON 15EDGRHD-3.5-16P

Products weight (without packaging)

4.69

Packing unit

590

Marking strip

/

Bridge

/

Coding strip

/

Operating tool

/

Screwdriver

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

16

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

2.5KV

Rated surge voltage(III/2)

2.5KV

Rated surge voltage(III/3)

2.5KV

Rated voltage(II/2)

250V

Rated voltage(III/2)

125V

Rated voltage(III/3)

80V

Rated current (C)

10A

Rated current (B)

10A

Rated voltage (B)

150V

Number of rows

2

螺距

3.5mm

Rated current

10A

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
