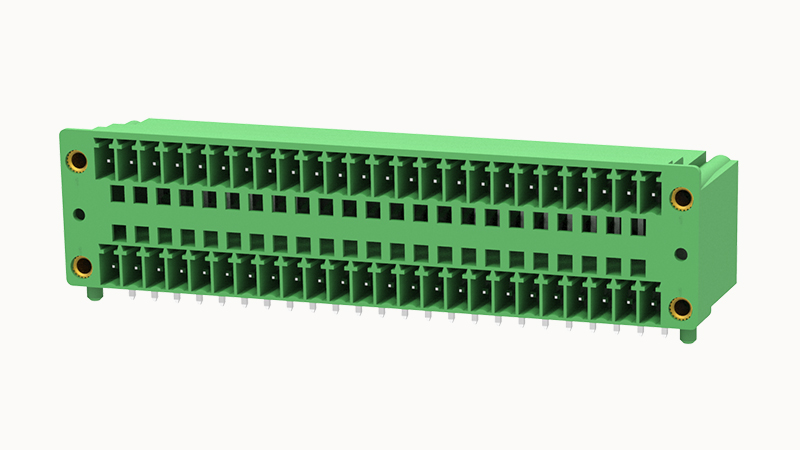

DEGSON 15EDGRHM-3.81-48P

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

80

Products weight (without packaging)

37.1875

Test Specification

IEC60947/UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

48

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

2.5KV

Rated voltage(II/2)

250V

Rated current (B)

8A

Rated voltage (B)

300V

Number of rows

1

螺距

3.81mm

Rated current

7A

Rated voltage

250V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
