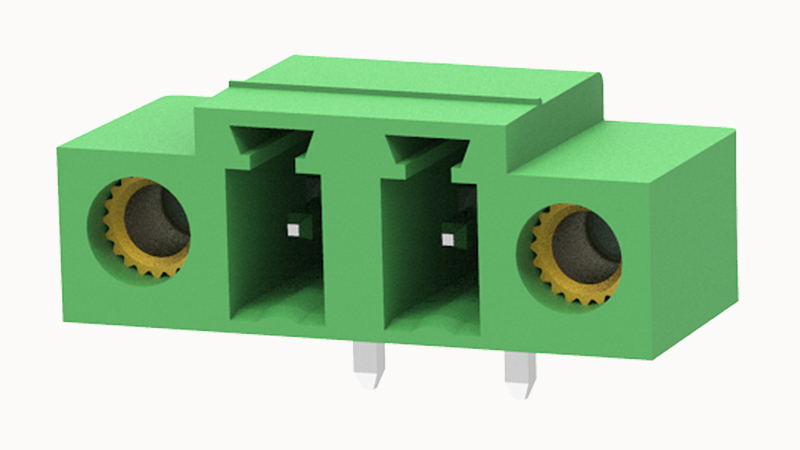

DEGSON 15EDGRM-5.08-02P

Rated voltage (B)

300V

Rated current (B)

8A

Rated current(II/2)

450V

Rated surge voltage(II/2)

4KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Single row in a straight line

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC60947/UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

5.08mm

Rated current

7A

Rated voltage

450V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
