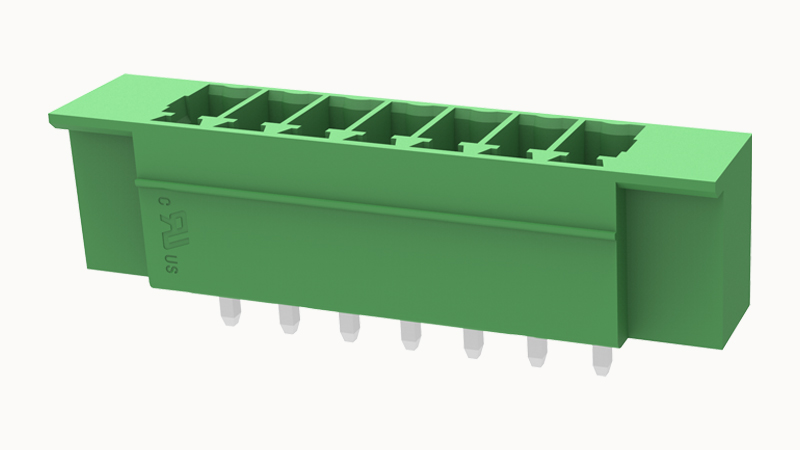

DEGSON 15EDGVMG-3.5-07P

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

15EDG-PWP

Bridge

/

Marking strip

/

Packing unit

800

Products weight (without packaging)

2

Insulating material group

Ⅰ

Shell color

green

Glow Wire Flammability Index GWFI

850

Relative tracking index CTI

600V

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

7

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Rated surge voltage(II/2)

2.5KV

Rated voltage(II/2)

250V

Rated current (D)

8A

Rated current (B)

8A

Rated voltage (D)

300V

Rated voltage (B)

300V

Type of packaging

bag packaging

Number of rows

1

螺距

3.5mm

UL可燃性规范

UL94V-0

Rated current

7A

Rated voltage

250V
