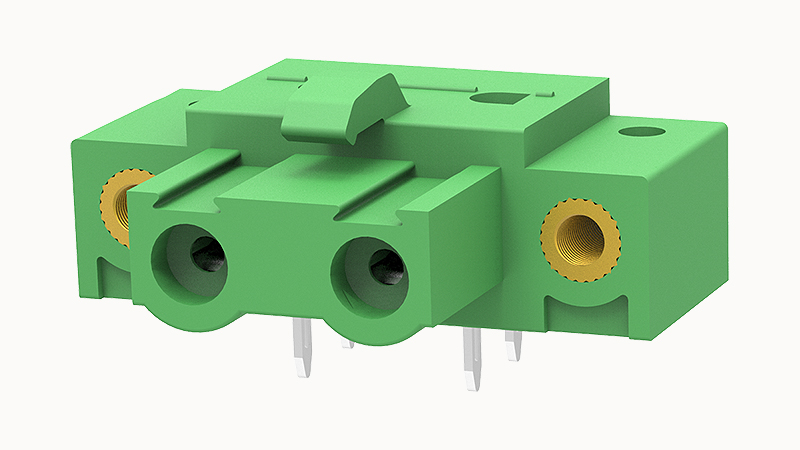

DEGSON 2EDGAM-7.62-02P

Ambient temperature (operation)

-40℃~105℃

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

2

Pin arrangement

Double-row in a straight line

Type of installation

PCB welding

Connection direction

0°

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated current(II/2)

1000V

Rated current(III/2)

400V

Rated current(III/3)

400V

Rated current (D)

15A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (B)

300V

Number of rows

1

螺距

7.62mm

Rated current

20A

Rated voltage

400V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
