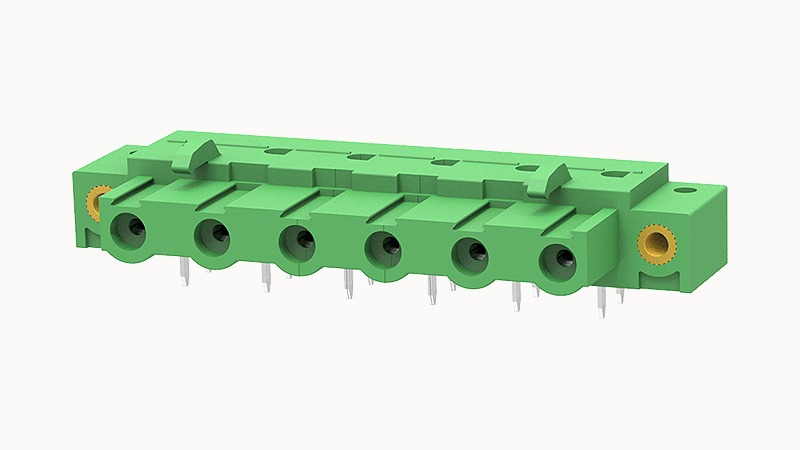

DEGSON 2EDGAM-7.62-06P

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

15A

Rated voltage(III/3)

400V

Rated voltage(III/2)

400V

Rated voltage(II/2)

1000V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Connection direction

0°

Type of installation

PCB welding

Pin arrangement

Double-row in a straight line

Number of potentials

6

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

255

Products weight (without packaging)

6.546

Number of rows

1

螺距

7.62mm

Rated current

20A

Rated voltage

400V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
