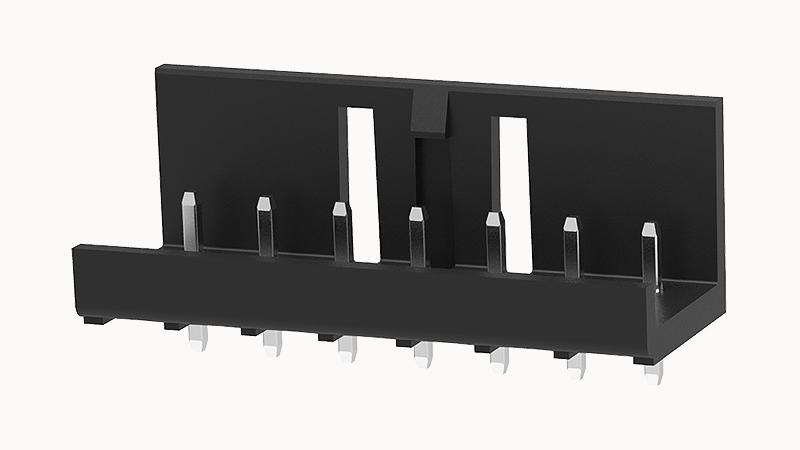

DEGSON 2EDGJ-5.08-07P

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Screwdriver

/

Operating tool

/

Coding strip

/

Bridge

/

Marking strip

/

Packing unit

750

Products weight (without packaging)

2.5667

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

7

Pin arrangement

Single row in a straight line

Type of installation

PCB welding

Connection direction

90°

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated voltage(II/2)

630V

Rated voltage(III/2)

320V

Rated voltage(III/3)

250V

Rated current (D)

10A

Rated current (B)

18A

Rated voltage (D)

300V

Rated voltage (B)

300V

Number of rows

1

螺距

5.08mm

Rated current

15A

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
