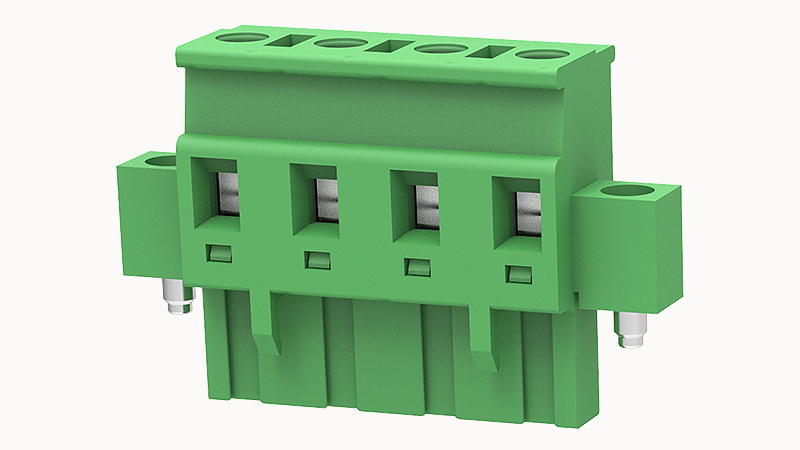

DEGSON 2EDGKAM-7.5-04P

Ambient temperature (operation)

-40℃~105℃

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

Nickel plating

Contact point metal surface

Nickel plating

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

4

Screwdriver

Slotted screwdriver

Connection direction

90°

Rated surge voltage(III/2)

4KV

Rated current(III/2)

400V

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

7mm

Torque

0.4N.m

AWG

28~12AWG

Conductor cross section flexible

1.0~2.5mm²

Conductor cross section solid

1.0~2.5mm²

Number of rows

1

螺距

7.5mm

Rated current

10A

screw thread

M2.5

Connection method

Screw connection

Rated voltage

400V

Flammability rating

UL94V-0
