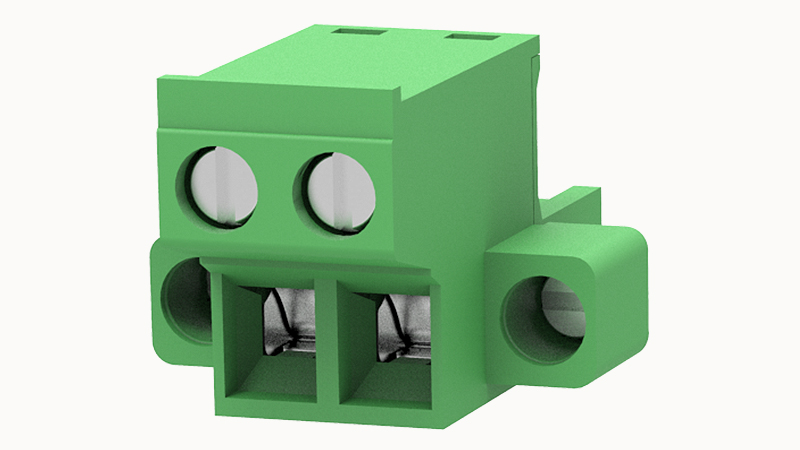

DEGSON 2EDGKCM-5.08-02P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

28~12AWG

Torque

0.5N.m

Strip length

9mm

Rated voltage (B)

300V

Rated voltage (C)

150V

Rated voltage (D)

300V

Rated current (B)

15A

Rated current (D)

10A

Rated current (C)

15A

Rated current(III/2)

320V

Rated surge voltage(III/2)

4KV

Connection direction

90°

Screwdriver

Slotted screwdriver

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

5.08mm

Rated current

20A

screw thread

M2.5

Connection method

Screw connection

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
