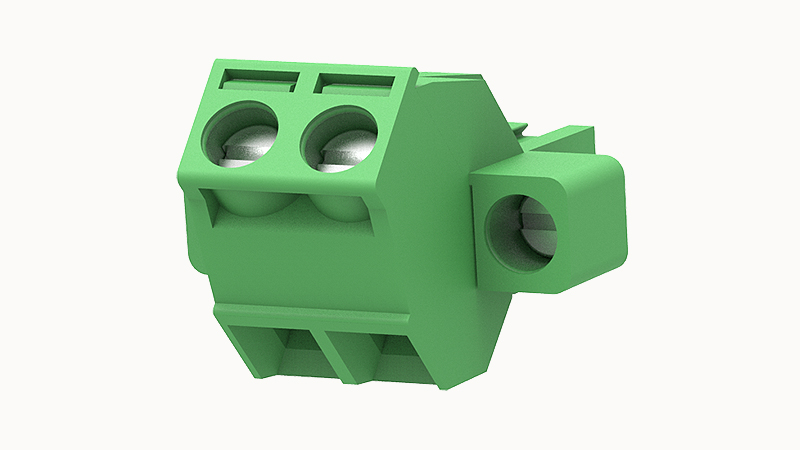

DEGSON 2EDGKLM-5.08-02P

Conductor cross section solid

1.0~2.5mm²

Conductor cross section flexible

1.0~2.5mm²

AWG

24~12AWG

Torque

0.4N.m

Strip length

10mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Rated current(III/2)

250V

Rated surge voltage(III/2)

2KV

Connection direction

45°

Pin arrangement

Single row in a straight line

Screwdriver

Slotted screwdriver

Number of potentials

2

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

5.08mm

Rated current

12A

screw thread

M2.5

Connection method

Screw connection

Rated voltage

250V

Flammability rating

UL94V-0
