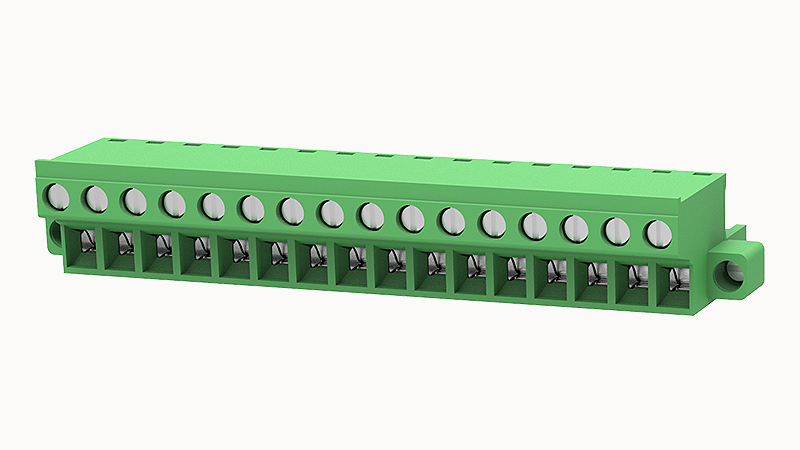

DEGSON 2EDGKCM-5.08-16P

Products weight (without packaging)

47.692

Packing unit

100

Marking strip

/

Bridge

DG019-5.0

Coding strip

2EDG-PWI

Operating tool

/

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

16

Screwdriver

Slotted screwdriver

Connection direction

90°

Rated surge voltage(III/2)

4KV

Rated voltage(III/2)

320V

Rated current (C)

15A

Rated current (D)

10A

Rated current (B)

15A

Rated voltage (D)

300V

Rated voltage (C)

150V

Rated voltage (B)

300V

Strip length

9mm

Torque

0.5N.m

AWG

28~12AWG

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section solid

0.2~2.5mm²

Number of rows

1

螺距

5.08mm

Rated current

20A

screw thread

M2.5

Connection method

Screw connection

Rated voltage

320V

过程

Wave soldering/manual soldering

Flammability rating

UL94V-0
