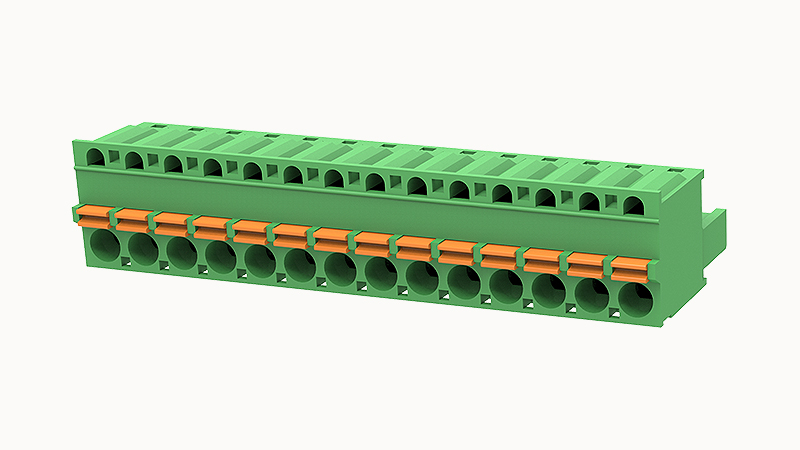

DEGSON 2EDGKD-5.0-14P
- 收藏
- 对比
2EDGKD-5.0-14P
637-2EDGKD-5.0-14P
端子板 - 针座，插头和插座
--
大陆
立即发货
Pluggable terminal blocks,Rated current:20A.Rated voltage （Ⅲ/2）:320V,pitch:5.0mm,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
2EDGKD-5.0-14P详情
DEGSON 2EDGKD-5.0-14P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
tin-plated
Contact zone metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC61984/ UL1059
Ambient temperature (operation)
-40℃~105℃(depending on derating curve)
Coding strip
/
Bridge
/
Marking strip
/
Operating tool
/
Screwdriver
/
Packing unit
165
Products weight (without packaging)
21.2
Pluggable or not
有
Number of potentials
14
Connection direction
0°
Rated surge voltage(III/2)
4KV
Rated voltage(III/2)
320V
Rated current (D)
10A
Rated current (B)
10A
Rated voltage (D)
300V
Rated voltage (B)
300V
Strip length
10mm
AWG
26~12AWG
Conductor cross section flexible
0.2~2.5mm²
Conductor cross section solid
0.2~2.5mm²
Number of rows
1
螺距
5mm
Rated current
20A
Connection method
Push-in spring connection
Rated voltage
320V
Flammability rating
UL94V-0
