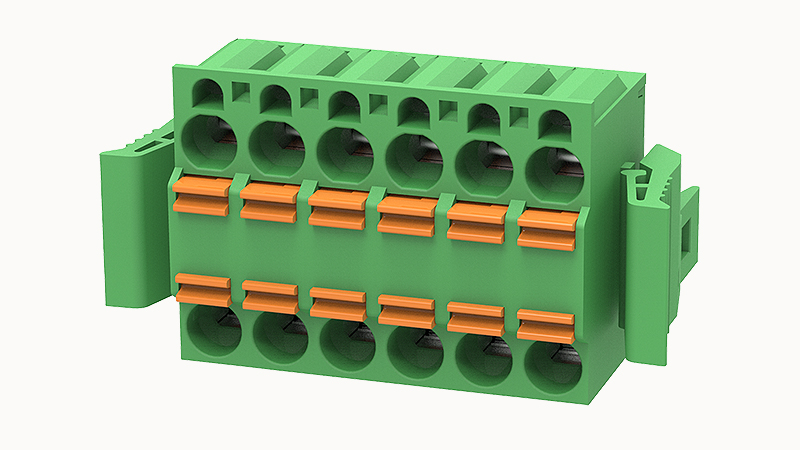

DEGSON 2EDGKDHG-5.08-06P
- 收藏
- 对比
2EDGKDHG-5.08-06P
637-2EDGKDHG-5.08-06P
端子板 - 针座，插头和插座
--
大陆
立即发货
Pluggable terminal blocks,Rated current:20A.Rated voltage （Ⅲ/2）:320V,pitch:5.08mm,Color:green,Contact surface :Tin
1最小包装量--
请发送询价，我们将立即回复。
在线咨询
2EDGKDHG-5.08-06P详情
DEGSON 2EDGKDHG-5.08-06P重要参数规格及、参数值，及相似型号如下：
- 参数名参数值全选
- 参数名参数值全选
Conductor cross section solid
0.2~2.5mm²
Conductor cross section flexible
0.2~2.5mm²
AWG
26~12AWG
Strip length
10mm
Rated voltage (B)
300V
Rated voltage (D)
300V
Rated current (B)
12A
Rated current (D)
10A
Rated current(III/3)
250V
Rated current(III/2)
320V
Rated current(II/2)
630V
Rated surge voltage(III/3)
4KV
Rated surge voltage(III/2)
4KV
Rated surge voltage(II/2)
4KV
Connection direction
0°
Number of potentials
6
Pluggable or not
有
Environmental items
Compliant with REACH/RoHS
Contact Materials
Copper alloy
Contact point metal surface
tin-plated
Contact zone metal surface
tin-plated
Insulation Materials
PA66
Insulating material group
Ⅰ
Test Specification
IEC60947/UL1059
Ambient temperature (operation)
-40℃~105℃
Number of rows
2
螺距
5.08mm
Rated current
12A
Connection method
Push-in spring connection
Rated voltage
320V
Flammability rating
UL94V-0
