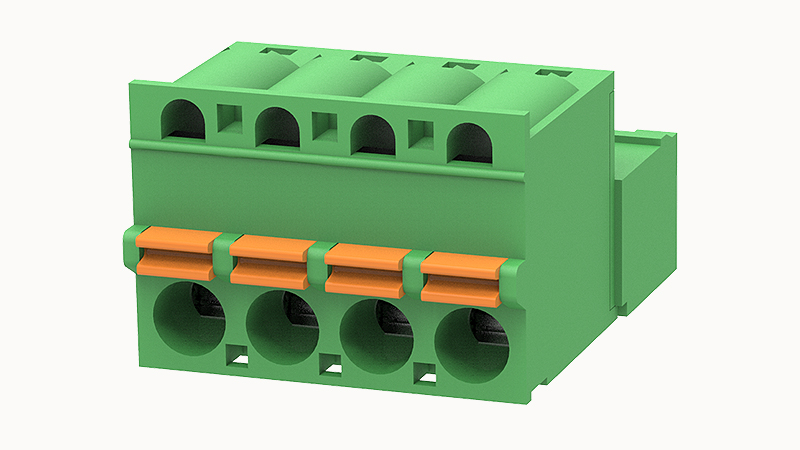

DEGSON 2EDGKDR-5.08-04P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

26~12AWG

Strip length

10mm

Rated voltage (B)

300V

Rated current (B)

10A

Rated voltage(III/2)

250V

Rated power frequency voltage(1min)

2.5KV

Connection direction

0°

Number of potentials

4

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

copper

Contact point metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Coding strip

/

Bridge

/

Marking strip

/

Operating tool

/

Screwdriver

/

Packing unit

560

Products weight (without packaging)

6.73

Number of rows

1

螺距

5.08mm

Rated current

12A

Connection method

Push-in spring connection

Rated voltage

250V

Flammability rating

UL94V-0
