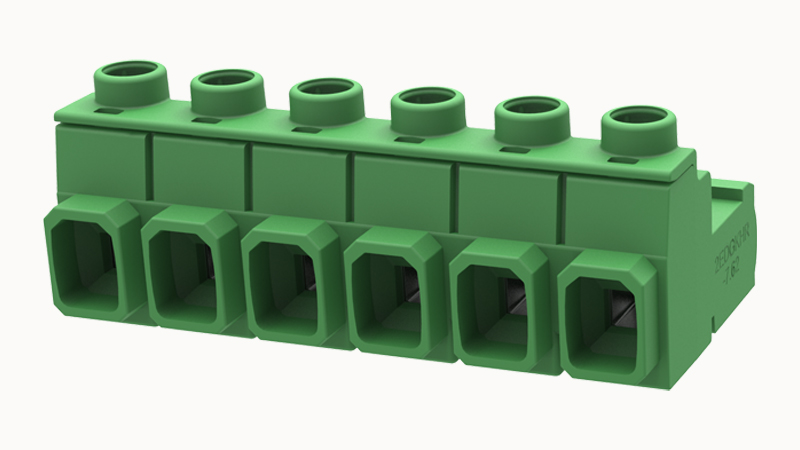

DEGSON 2EDGKHR-7.62-06P

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Shell color

green

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃(depending on derating curve)

Operating tool

/

Coding strip

2EDG-PWP

Bridge

/

Marking strip

/

Packing unit

250

Products weight (without packaging)

12.84

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

6

Screwdriver

Slotted screwdriver

Pin arrangement

Single row in a straight line

Connection direction

0°

Rated surge voltage(II/2)

6KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(III/3)

8KV

Rated voltage(II/2)

1000V

Rated voltage(III/2)

1000V

Rated voltage(III/3)

1000V

Rated current (C)

16A

Rated current (B)

16A

Rated voltage (C)

600V

Rated voltage (B)

600V

Strip length

8mm

Torque

0.6N.m

AWG

30~12AWG

feeler gauge a x b／diameter

2.8mm x2.0mm/2.4mm

Conductor cross section flexible

0.2~2.5mm²

Conductor cross section solid

0.2~2.5mm²

Type of packaging

box-packed

Number of rows

1

螺距

7.62mm

Rated current

16A

screw thread

M3

Connection method

Screw connection

Rated voltage

1000V

Flammability rating

UL94V-0
