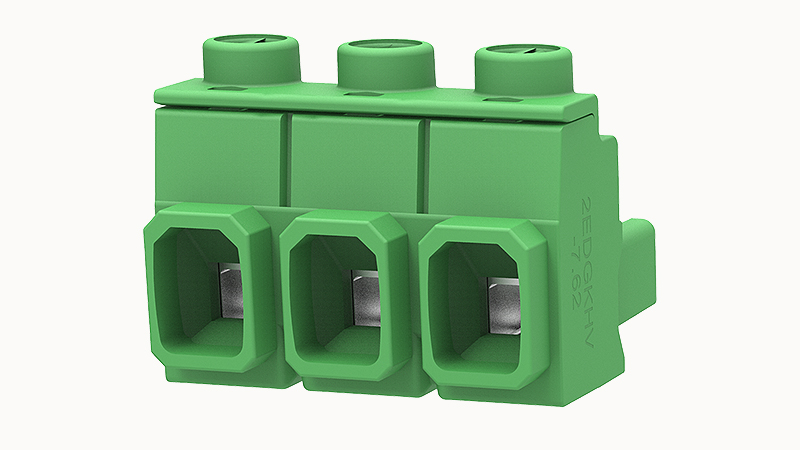

DEGSON 2EDGKHV-7.62-03P

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

30~12AWG

Torque

0.6N.m

Strip length

7mm

Rated voltage (B)

600V

Rated voltage (C)

600V

Rated current (B)

20A

Rated current (C)

20A

Rated current(III/3)

1000V

Rated current(III/2)

1000V

Rated current(II/2)

1000V

Rated surge voltage(III/3)

8KV

Rated surge voltage(III/2)

8KV

Rated surge voltage(II/2)

6KV

Connection direction

0°

Screwdriver

Slotted screwdriver

Number of potentials

3

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact point metal surface

tin-plated

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

1

螺距

7.62mm

Rated current

16A

screw thread

M3

Connection method

Screw connection

Rated voltage

1000V

Flammability rating

UL94V-0
