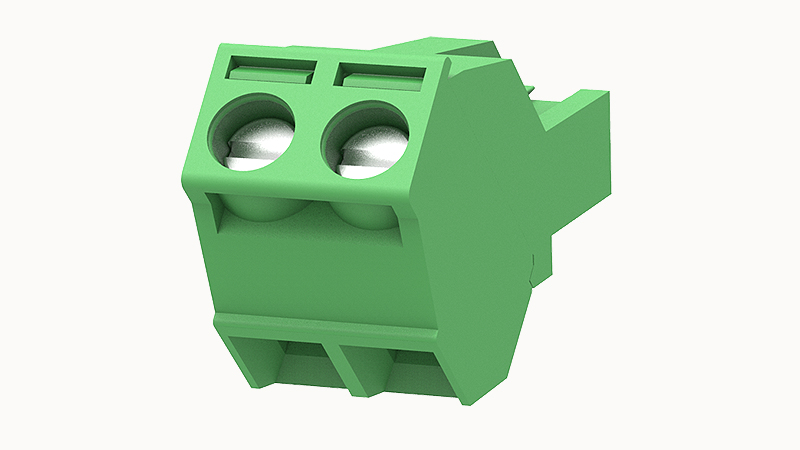

DEGSON 2EDGKL-5.08-02P

Ambient temperature (operation)

-40℃~105℃

Test Specification

IEC61984/ UL1059

Insulating material group

Ⅰ

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact point metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

2

Screwdriver

Slotted screwdriver

Pin arrangement

Single row in a straight line

Connection direction

45°

Rated surge voltage(III/2)

2KV

Rated current(III/2)

320V

Rated current (D)

10A

Rated current (B)

10A

Rated voltage (D)

300V

Rated voltage (B)

300V

Strip length

10mm

Torque

0.4N.m

AWG

24~12AWG

Conductor cross section flexible

1.0~2.5mm²

Conductor cross section solid

1.0~2.5mm²

Number of rows

1

螺距

5.08mm

Rated current

20A

screw thread

M2.5

Connection method

Screw connection

Rated voltage

320V

Flammability rating

UL94V-0
