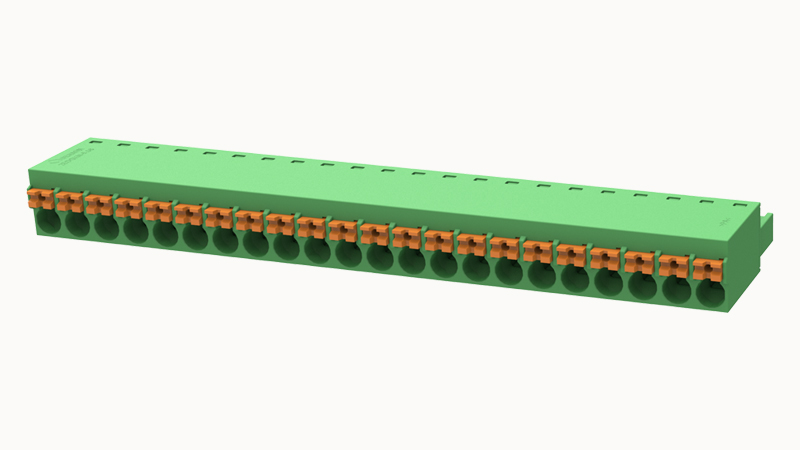

DEGSON 2EDGKN-5.08-22P

Ambient temperature (operation)

-40 °C ~ 105 °C（depending on derating curve）

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~2.5mm²

AWG

24~16AWG

Strip length

11mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Products weight (without packaging)

27.8

Packing unit

120

Test Specification

IEC61984/ UL1059

Shell color

green

Insulation Materials

PA66

Contact zone metal surface

tin-plated

Contact Materials

Copper alloy

Environmental items

Compliant with REACH/RoHS

Pluggable or not

有

Number of potentials

22

Screwdriver

slotted-phillips screwdriver

Rated surge voltage(II/2)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(III/3)

4KV

Rated voltage(II/2)

630V

Rated voltage(III/2)

400V

Rated voltage(III/3)

320V

Number of rows

1

螺距

5.08mm

Rated current

12A

Connection method

Push-in spring connection

Rated voltage

400V

Flammability rating

UL94V-0
