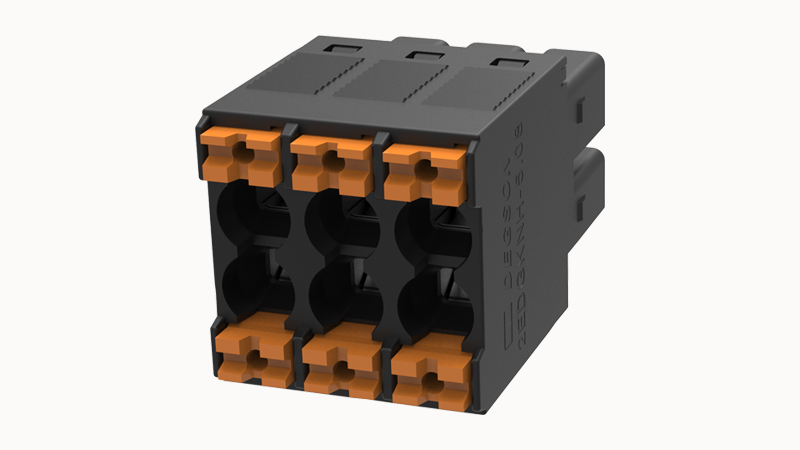

DEGSON 2EDGKNH-5.08-06P

Type of packaging

bag packaging

Conductor cross section solid

0.2~2.5mm²

Conductor cross section flexible

0.2~1.5mm²

AWG

24~16AWG

Strip length

10mm

Rated voltage (B)

300V

Rated voltage (D)

300V

Rated current (B)

10A

Rated current (D)

10A

Rated current(III/3)

250V

Rated current(III/2)

400V

Rated current(II/2)

630V

Rated surge voltage(III/3)

4KV

Rated surge voltage(III/2)

4KV

Rated surge voltage(II/2)

4KV

Number of potentials

6

Pluggable or not

有

Environmental items

Compliant with REACH/RoHS

Contact Materials

Copper alloy

Contact zone metal surface

tin-plated

Insulation Materials

PA66

Relative tracking index CTI

600V

Glow Wire Flammability Index GWFI

850

Shell color

Black

Insulating material group

Ⅰ

Test Specification

IEC61984/ UL1059

Ambient temperature (operation)

-40℃~105℃

Number of rows

2

螺距

5.08mm

Rated current

8A

Connection method

Push-in spring connection

Rated voltage

400V

Flammability rating

UL94V-0
